HS501.01

Library Main Entry

The Library Main Entry is the student entry to the library accommodating bag storage and electronic gates for security.

Plans are also provided for various sizes – HS501.01 and HS501.02.

ROOM RELATIONSHIPS

This space is found in the Library Unit. The Library Main Entry should have direct access to the Library Main Area and to a possible Toilet or Access Toilet. Line of sight and access to the Careers Advisor’s Office is desirable.

Technical Data

Acoustics NL NOISE LEVELS Noise levels within this space should be considered. Refer to DG / ACOUSTICS / INTERNAL NOISE LEVELS R2R ROOM TO ROOM NOISE Noise to and from adjacent rooms should be considered. Refer to DG / ACOUSTICS / ROOM TO ROOM NOISE CONTROL RA ROOM ACOUSTICS Room acoustics, particularly reverberation time should be considered. Refer to DG / ACOUSTICS / ROOM ACOUSTICS	Ceiling ACC ACOUSTIC CEILING TYPE NRC >0.85 highly absorptive ceiling. Refer to DG / CEILING	Communications CO COMMUNICATIONS/TELEPHONE POINTS Data points required. Refer to DG / COMMUNICATIONS AV AUDIO VISUAL REQUIREMENTS Audio visual requirements and considerations apply. Refer to DG / COMMUNICATIONS
Cooling N/A	Doors DT DOOR TYPE Electronic Security Gates/Barrier to Main Area. Refer to DG / DOORS	Drainage N/A
Fire Protection FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH CP- Carpet finish, to match adjacent area. Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination OTH ILLUMINATION - OTHER Refer to DG / LIGHTING LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed alike - Library Facility (LIB). Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Library Facility (LIB). Refer to SG455 / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA Type 1 - 25m2 Type 2 - 20m2 Refer to DG / AREA OTH PLANNING - OTHER Separate space where local climate or noise dictates. Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS Refer to DG / POWER
Security A SECURITY LEVEL A Category A - Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS CTV CCTV CCTV monitoring of Library is required. Refer to DG / SPECIAL ELECTRICAL SYSTEMS OTH SECURITY - OTHER Include Security Alarm system to subsidiary exit doors when provided, with alarm in office. Refer to DG / SPECIAL ELECTRICAL SYSTEMS	Signs DSF DOOR SIGNAGE "LIBRARY". Refer to DG / DOOR SIGNS SIG SIGNS GENERAL NOTICES Notice "THIS AREA IS UNDER VIDEO SURVEILLANCE", in a conspicuous position. Refer to DG / SIGNS	Ventilation OTH VENTILATION - OTHER Refer to DG / VENTILATION
Wall OTH WALL - OTHER Maximise display potential at high level. Refer to SG / LINING	Water N/A	Windows Y WINDOWS - Y Windows are required for this space. Refer to DG / WINDOWS OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS OTH WINDOW - OTHER Internal observation Glazing to Systems Administrator and Careers Advisor areas. Refer to DG / WINDOWS

Suggested Fixtures

Bag Storage racks for bags. Refer to SG DRAWING / SG501/1
Holland Blinds to External windows

SPECIFICATION DRAWINGS

SG501/1 Bag Storage

sg501-1.pdf

sg501-1.pdf (159 KB)

Suggested Furniture

ID	Description

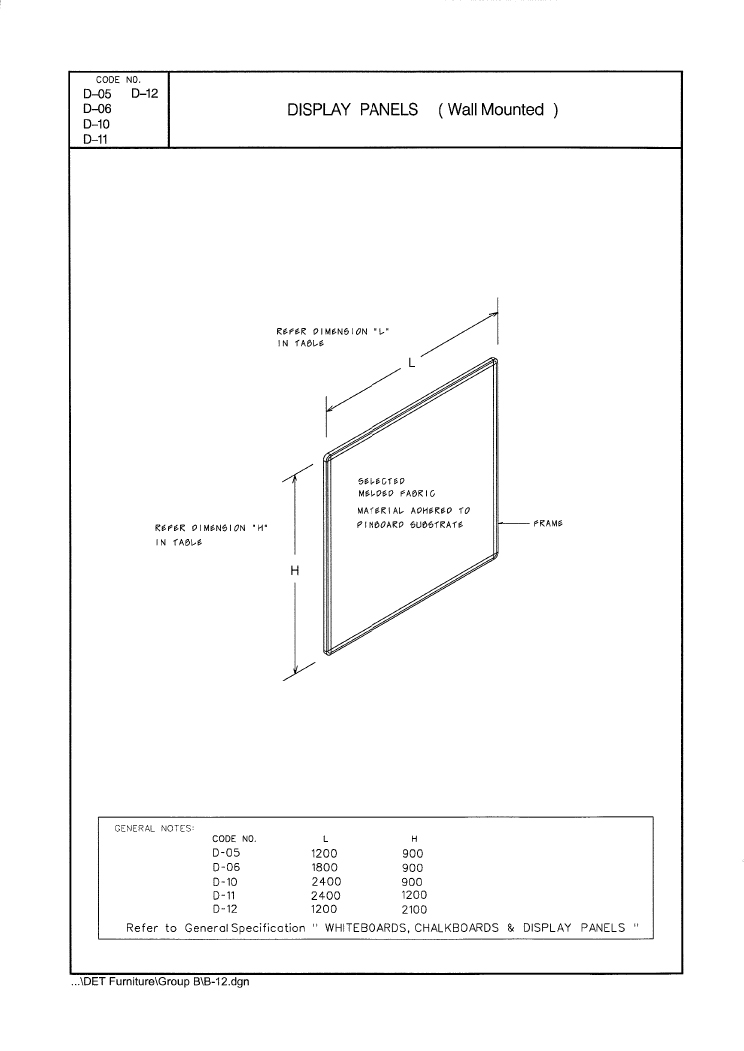

D-06	Fixed Display Panel, Fabric, with frame, 1800	View image

SAMPLE PLANS & DETAILS

HS501.01 Library Main Entry - Type 1

hs501-01.pdf

hs501-01.pdf (156 KB)

HS501.01 Library Main Entry - Type 1

hs501-02.pdf

hs501-02.pdf (151 KB)

HS501.02 Library Main Entry - Type 2
