Shared Office / Workroom

Technical Data

Acoustics NL NOISE LEVELS Noise levels within this space should be considered. Refer to DG / ACOUSTICS / INTERNAL NOISE LEVELS R2R ROOM TO ROOM NOISE Noise to and from adjacent rooms should be considered. Refer to DG / ACOUSTICS / ROOM TO ROOM NOISE CONTROL RA ROOM ACOUSTICS Room acoustics, particularly reverberation time should be considered. Refer to DG / ACOUSTICS / ROOM ACOUSTICS	Ceiling ACC ACOUSTIC CEILING TYPE Standard ceiling. Refer to DG / CEILING	Communications CO COMMUNICATIONS/TELEPHONE POINTS Communications/Telephone point requirements and considerations apply. Refer to DG / COMMUNICATIONS WAP WIRELESS ACCESS POINTS This room is to be wireless enabled. Refer to DG / COMMUNICATIONS
Cooling FAN FAN Fan required. Refer to DG / COOLING POLICY / CEILING / WALL FANS MC MECHANICAL COOLING Provide mechanical cooling where regionally appropriate. Refer to DG / COOLING POLICY	Doors GL GLAZED DOORS A glazed door panel may be used. Refer to DG / DOORS	Drainage SD SANITARY DRAINAGE FIXTURES 1 drainage outlet. Refer to DG / DRAINAGE
Fire Protection FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH Carpet finish. Refer to DG / FLOOR OTH FLOOR - OTHER Mat near sink. Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for Heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Lighting control requirements as outlined in Design Guide. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed aliked - Library. Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration & Staff. Refer to SG455 / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA Type 2 - 20 m2 for Core seven Type 3 - 24 m2 for Core fourteen Type 4 - 27 m2 for Core twenty one Refer to DG / AREA OTH PLANNING - OTHER Direct connection to Library Main Area (PS501.01). Refer to DG / AREA	Power CM CABLE MANAGEMENT Cable management to be considered. Refer to DG / POWER GPO GENERAL POWER OUTLETS General power outlets required. Refer to DG / POWER OTH POWER - OTHER Other power considerations may apply. Refer to DG / POWER
Security B SECURITY LEVEL B Category B - Moderately Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE Door signage required. Suggested text "Office". Refer to DG / DOOR SIGNS OTH SIGNS - OTHER Sign with red text and symbol “Warning – this fixture may deliver hot water which will scald.” Refer to DG / SIGNS	Ventilation NV NATURAL VENTILATION Provide Natural Ventilation. Refer to DG / VENTILATION and DG / AIR MOVEMENT / NATURAL VENTILATION
Wall OTH WALL - OTHER 450mm high splashback above sink & bench. Refer to SG / LINING	Water HW TEMPERED WATER Required to 1 x sink. Refer to DG / WATER CW COLD WATER Required to 1 x sink, 1 x BWU. Refer to DG / WATER	Windows OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS OTH WINDOWS - OTHER Maximise Observation window to Reading Area and Main Entrance Sill 1000mm to 1100mm. Refer to DG / WINDOWS

ID	Description
B-124L	Fixed Bench Cupboard, Technology 450, LH Door	View image

C-04	Cupboard, Clothes Locker	View image

C-29	Cabinet, Foolscap Filing, 4 Drawer	View image

D-05	Fixed Display Panel, Fabric, with frame, 1200	View image

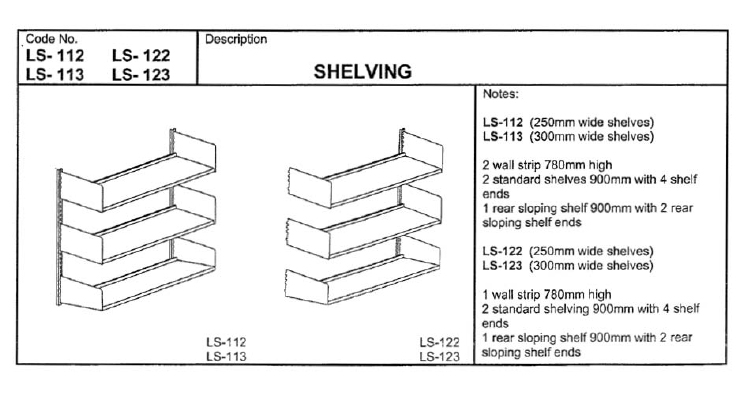

LS-112	Fixed Shelving, 800mm, Wall Fixed, Starting Bay with 2 Std 250mm Shelves, 1 Rear Sloping 250mm Shelf	View image

LS-122	Fixed Shelving, Wall Fixed, Add on Bay with 2 Rear Wall Shelves, 1 Rear Sloping Shelf	View image

LS-512	Fixed Shelving, Wall Fixed, Starting Bay with 5 Rear Wall Shelves, 1 Rear Sloping Shelf	View image

LS-522	Fixed Shelving, 2000mm, Wall Fixed, Add on Bay with 5 Std 250mm Shelves, 1 Rear Sloping 250mm Shelf	View image

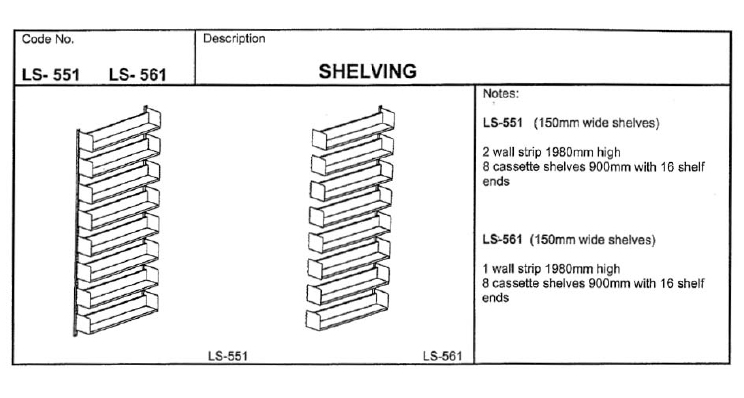

LS-551	Fixed Shelving, Wall Fixed, Starting Bay with 8 Cassette Shelves	View image

M-206	Fixed Top, Bench Technology, 1220 x 600	View image

S-14	Chair, Swivel, Gas (without Arms)	View image

S-32	Stool, High	View image

SK-41	Fixed Sink, Right Hand Bowl	View image

T-60	Table, Bench Height	View image

T-88	Table, Pedestal, Mobile, 2 Drawer and File Drawer	View image

UWS-1	Workstation L-shaped, 1500 x 1500	View image

UWS-4	Workstation L-shaped, 1800 x 1800	View image

Description

B-124L

Fixed Bench Cupboard, Technology 450, LH Door

View image

C-04

Cupboard, Clothes Locker

View image

C-29

Cabinet, Foolscap Filing, 4 Drawer

View image

D-05

Fixed Display Panel, Fabric, with frame, 1200

View image

LS-112

Fixed Shelving, 800mm, Wall Fixed, Starting Bay with 2 Std 250mm Shelves, 1 Rear Sloping 250mm Shelf

View image

LS-122

Fixed Shelving, Wall Fixed, Add on Bay with 2 Rear Wall Shelves, 1 Rear Sloping Shelf

View image

LS-512

Fixed Shelving, Wall Fixed, Starting Bay with 5 Rear Wall Shelves, 1 Rear Sloping Shelf

View image

LS-522

Fixed Shelving, 2000mm, Wall Fixed, Add on Bay with 5 Std 250mm Shelves, 1 Rear Sloping 250mm Shelf

View image

LS-551

Fixed Shelving, Wall Fixed, Starting Bay with 8 Cassette Shelves

View image

M-206

Fixed Top, Bench Technology, 1220 x 600

View image

S-14

Chair, Swivel, Gas (without Arms)

View image

S-32

Stool, High

View image

SK-41

Fixed Sink, Right Hand Bowl

View image

T-60

Table, Bench Height

View image

T-88

Table, Pedestal, Mobile, 2 Drawer and File Drawer

View image

UWS-1

Workstation L-shaped, 1500 x 1500

View image

UWS-4

Workstation L-shaped, 1800 x 1800

View image

NOISE LEVELS

ROOM TO ROOM NOISE

ROOM ACOUSTICS

ACOUSTIC CEILING TYPE

COMMUNICATIONS/TELEPHONE POINTS

FAN

MECHANICAL COOLING

GLAZED DOORS

SANITARY DRAINAGE FIXTURES

FIRE HOSE REEL

FLOOR FINISH

FLOOR - OTHER

GAS - OTHER

HEATING

LUX LEVEL

LIGHTING CONTROL

KEYING GENERAL

MASTER KEYING

DAYLIGHT

AREA

PLANNING - OTHER

CABLE MANAGEMENT

GENERAL POWER OUTLETS

POWER - OTHER

SECURITY LEVEL B

DOOR SIGNAGE

SIGNS - OTHER

NATURAL VENTILATION

WALL - OTHER

TEMPERED WATER

COLD WATER

OBSERVATION WINDOWS
Observation windows required.

Refer to DG / WINDOWS

WINDOWS - OTHER
