Sick Bay

Technical Data

Acoustics NL NOISE LEVELS Noise levels within this space should be considered. Refer to DG / ACOUSTICS / INTERNAL NOISE LEVELS R2R ROOM TO ROOM NOISE Noise to and from adjacent rooms should be considered. Refer to DG / ACOUSTICS / ROOM TO ROOM NOISE CONTROL	Ceiling ACC ACOUSTIC CEILING TYPE Standard ceiling. Refer to DG / CEILING	Communications CO WAP WIRELESS ACCESS POINTS This room is to be wireless enabled. Refer to DG / COMMUNICATIONS
Cooling FAN FAN Fan required. Refer to DG / COOLING POLICY / CEILING / WALL FANS MC MECHANICAL COOLING Provide mechanical cooling where regionally appropriate. Refer to DG / COOLING POLICY	Doors N/A	Drainage SD SANITARY DRAINAGE FIXTURES 1 Drainage outlet. Refer to DG / DRAINAGE
Fire Protection FD FIRE DETECTION/ALARMS Fire detection/alarms to comply with NCC. Refer to DG / THERMAL/SMOKE DETECTORS	Floor FF FLOOR FINISH SV-Sheet Vinyl (not foam backed). Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for Heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed to differ (KD). Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration & Staff (AF). Refer to SG455 / DOOR HARDWARE / KEYING
Light N/A	Planning m^2 AREA 13 m2. Refer to DG / AREA XY PROPORTION Type 1 - Designed as bay to adjacent home base. Type 2 - Designed as a separate room adjacent to Clerical/printing or with CCTV. Refer to DG / AREA	Power CM CABLE MANAGEMENT Cable management to be considered. Refer to DG / POWER GPO GENERAL POWER OUTLETS 1 double socket outlets. Refer to DG / POWER
Security A SECURITY LEVEL A Category A - Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS CTV CCTV CCTV monitoring of Sick bay may be required. Refer to DG / SPECIAL ELECTRICAL SYSTEMS OTH SECURITY OTHER Include Alarm Call System. Refer to DG / SPECIAL ELECTRICAL SYSTEMS	Signs DSF DOOR SIGNAGE "SICK BAY". Refer to DG / DOOR SIGNS SIG SIGNS GENERAL When CCTV Camera installed: Notice "THIS AREA IS UNDER VIDEO SURVEILLANCE", in a conspicuous position. Refer to DG / SIGNS	Ventilation NV NATURAL VENTILATION Provide Natural Ventilation. Refer to DG / VENTILATION and DG / AIR MOVEMENT / NATURAL VENTILATION
Wall OTH WALL - OTHER 450mm high water resistant splashback to sink and bench. Refer to SG / LINING	Water HW TEMPERED WATER Tempered water required to 1 x sink. Refer to DG / WATER CW COLD WATER CW Required to 1 x sink. Refer to DG / WATER	Windows OTH WINDOWS - OTHER When windows included provide obscure glazing except for Observation window Include Observation window( one way glazing) to adjacent Clerical/Printing, 600mm wide 900mm high with sill at 1200mm. Refer to DG / WINDOWS

ID	Description
B-05	Fixed Bench Cupboard, RH Sink, w/Drainer, 1220	View image

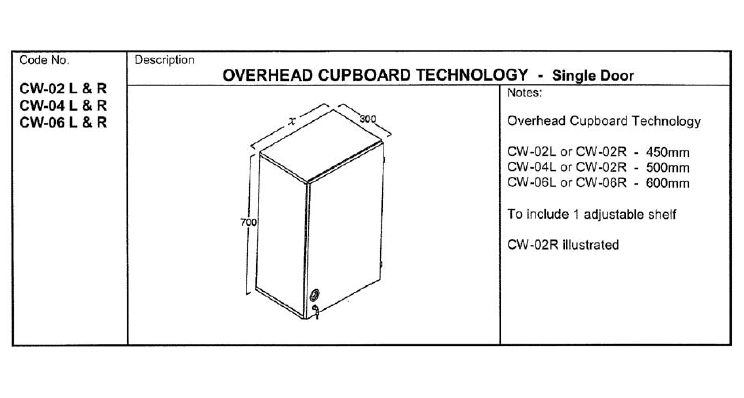

CW-04L	Fixed Overhead Cupboard, Technology 500, LH Door	View image

D-05	Fixed Display Panel, Fabric, with frame, 1200	View image

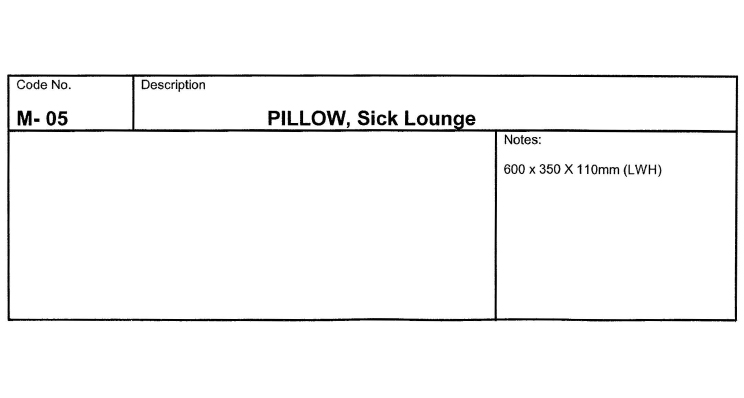

M-05	Sick Lounge Pillow	View image

M-12	Sick Lounge, with Overlay	View image

S-52	Chair, Plastic C, Postura (Primary) (335mm height)	View image

B-20L	Fixed Bench Cupboard, Technology 500, LH Door	View image

B-24	Fixed Bench Cupboard, Technology 500, 4 Drawers	View image

CW-04R	Fixed Overhead Cupboard, Technology 500, LH Door	View image

M-05	Sick Lounge Pillow	View image

M-12	Sick Lounge, with Overlay	View image

M-85	Fixed Top, Bench Technology, 1020 x 600	View image

S-52	Chair, Plastic C, Postura (Primary) (335mm height)	View image

SK-42	Fixed Sink, Left Hand Bowl	View image
