SSP601.01

Reception/Entry Vestibule

The Reception/Entry Vestibule is the main point of arrival for guests and accommodates a reception counter and waiting space.

Plans are also provided for various sizes – SSP601.01, SSP601.02 and SSP601.03.

ROOM RELATIONSHIPS

This space is found in the Administration Unit. The Reception/Entry Vestibule should have direct access to the external Entrance Zone and the main reception desk. Direct access to an Interview Room is required. There should be a direct controlled connection to the general Administration internal circulation.

Technical Data

Acoustics N/A	Ceiling ACC ACOUSTIC CEILING TYPE Standard ceiling. Refer to DG / CEILING	Communications CO COMMUNICATIONS/TELEPHONE POINTS 1 double data point required. Refer to DG / COMMUNICATIONS AV AUDIO VISUAL REQUIREMENTS Future Audio visual requirements and considerations apply. Refer to DG / COMMUNICATIONS WAP WIRELESS ACCESS POINTS This room is to be wireless enabled. Refer to DG / COMMUNICATIONS
Cooling N/A	Doors DT DOOR TYPE Glass main Entry door, Door to circulation area. Refer to DG / DOORS GL DOOR GLAZING Glazed entry door. Refer to DG / DOORS	Drainage N/A
Fire Protection FD FIRE DETECTION/ALARMS Fire detection/alarms to comply with NCC. Refer to DG / THERMAL/SMOKE DETECTORS	Floor FF FLOOR FINISH C - Carpet finish. Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for Heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed Alike by block (ABK). Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration & Staff (AF). Refer to SG455 / DOOR HARDWARE / KEYING
Light N/A	Planning m^2 AREA Type 1 - 6 m2 Type 2 - 9 m2 Type 3 - 13 m2 Refer to DG / AREA OTH PLANNING - OTHER Located at entry point to administration building with direct access to adjacent Administration - Clerical area. Refer to DG / AREA	Power CM CABLE MANAGEMENT Cable management to be considered. Refer to DG / POWER GPO GENERAL POWER OUTLETS 2 single socket outlets. Refer to DG / POWER
Security A SECURITY LEVEL A Category A - Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE Information sign "AUTHORISED STAFF ONLY" on exterior of door to the Administration Circulation. Refer to DG / DOOR SIGNS SIG SIGNS GENERAL Information sign "ENQUIRIES", near Clerical/Printing Office. Refer to DG / DOOR SIGNS	Ventilation NV NATURAL VENTILATION Provide Natural Ventilation. Refer to DG / VENTILATION and DG / AIR MOVEMENT / NATURAL VENTILATION
Wall PF PINBOARD FINISH To Type 2 & 3 - Maximum Pinboard finish from floor to 2.1m, for Reception wall and wall with door/hallway leading to internal offices. Refer to SG / LINING	Water N/A	Windows Y WINDOWS - Y Windows are required for this space. Refer to DG / WINDOWS OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS OTH WINDOWS - OTHER External Daylight is desirable. View of room from outside is desirable. Reception Counter and sliding window. Refer to DG / WINDOWS

Suggested Fixtures

There are no suggested fixtures for this space.

Suggested Furniture

ID	Description

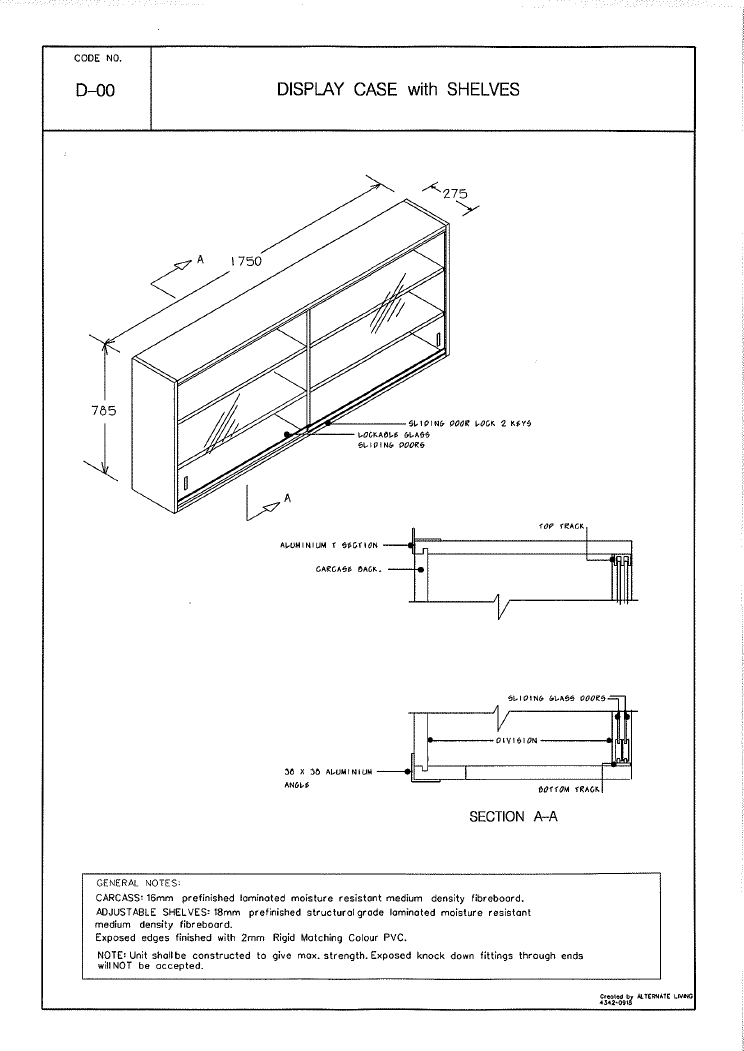

D-00	Fixed Display Case, with Shelves	View image

D-06	Fixed Display Panel, Fabric, with frame, 1800	View image

S-93	Chair, Visitor (with Arms) - Vinyl or Wool	View image

T-32	Table, Low, Square	View image

Sample Plans & Details

SSP601.01 Entry Vestibule - Type 1

ssp601-01.pdf

ssp601-01.pdf (148 KB)

SSP601.01 - Reception/Entry Vestibule - Type 1

ssp601-02.pdf

ssp601-02.pdf (150 KB)

SSP601.02 - Reception/Entry Vestibule - Type 2

ssp601-03.pdf

ssp601-03.pdf (155 KB)

SSP601.03 - Reception/Entry Vestibule - Type 3
