SSP501.32

KLA Resource Store Room

The KLA Resource Store Room contains supplementary group resources and equipment used in Key Learning areas. These stores are predominantly accessed by staff and should have limited access to students.

ROOM RELATIONSHIPS

This space is found in the Library Unit. The KLA Resource Store Room should have direct access to the Library Main Area.

Technical Data

Acoustics N/A	Ceiling ACC ACOUSTIC CEILING TYPE Standard ceiling. Refer to DG / CEILING	Communications N/A
Cooling N/A	Doors DT DOOR TYPE Door access from adjacent main area. Refer to DG / DOORS	Drainage N/A
Fire Protection FD FIRE DETECTION/ALARMS Fire detection/alarms to comply with NCC. Refer to DG / THERMAL/SMOKE DETECTORS	Floor FF FLOOR FINISH SV - Sheet Vinyl(not foam backed). Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination LUX LUX LEVEL 160 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed to differ (KD). Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Stores(ST). Refer to SG455 / DOOR HARDWARE / KEYING
Light N/A	Planning m^2 AREA Type 2 - 10 m2 Type 3 - 15 m2 Type 4 - 20 m2 Refer to DG / AREA	Power N/A
Security D SECURITY LEVEL D Category D - Moderately High Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE "STORE". Refer to DG / DOOR SIGNS	Ventilation N/A
Wall N/A	Water N/A	Windows OTH WINDOWS - OTHER When windows are provided include obscure glazing and security grilles. Refer to DG / WINDOWS VP VISUAL PRIVACY Visual privacy is required from other spaces. Refer to DG / WINDOWS

Suggested Fixtures

SA 600, Metal Adjustable Shelving Unit , 600mm deep
SA 400, Metal Adjustable Shelving Unit, 400mm deep

Suggested Furniture

ID	Description

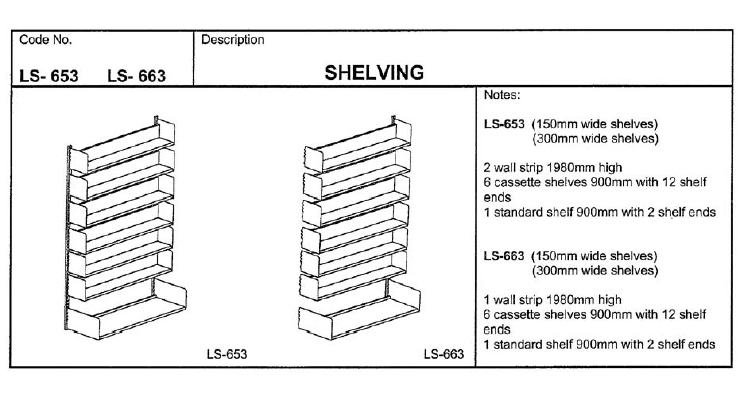

LS-653	Fixed Shelving, 2000mm, Wall Fixed, Starting Bay with 6 Cassette Shelves, 1 Std 300mm Shelf	View image

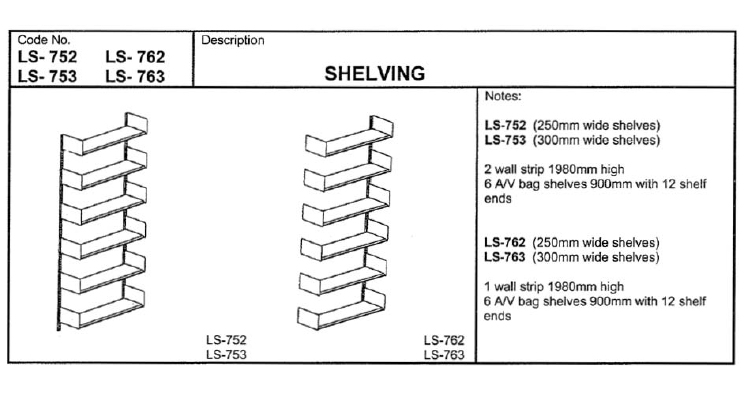

LS-752	Fixed Shelving, 2000mm, Wall Fixed, Starting Bay with 6 Bag Storage 250mm Shelves	View image

LS-762	Fixed Shelving, 2000mm, Wall Fixed, Add on Bay with 6 Bag Storage 250mm Shelves	View image

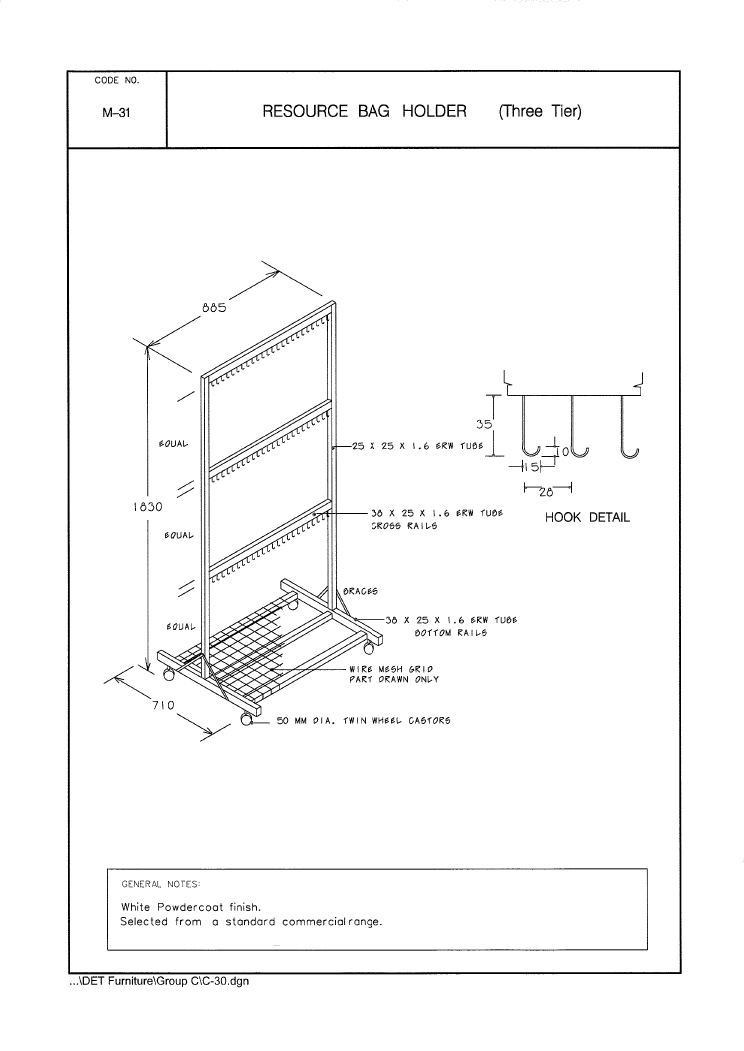

M-31	Resource Bag Rack, 3 Tier	View image

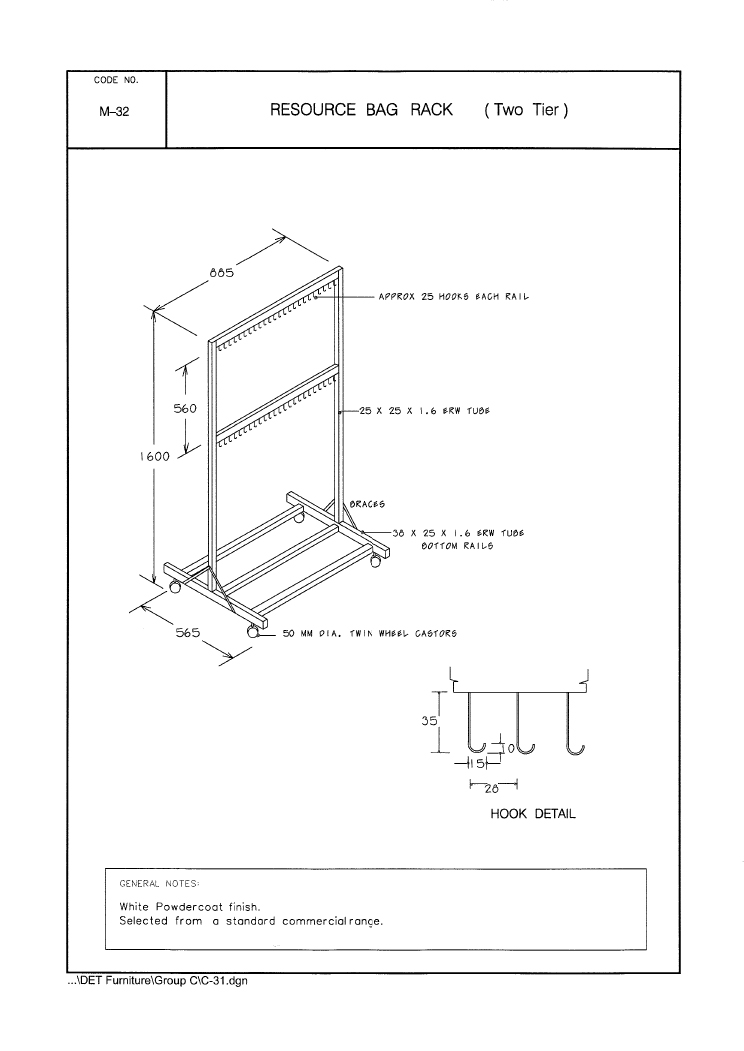

M-32	Resource Bag Rack, 2 Tier, Combination	View image

Sample Plans & Details

ssp501-32.pdf

ssp501-32.pdf (205 KB)

SSP501.32 - KLA Resource Store Room - Type 2

SSP501.33 KLA Resource Store - Type 3

ssp501-33.pdf

ssp501-33.pdf (225 KB)

SSP501.33 - KLA Resource Store Room - Type 3

ssp501-34.pdf

ssp501-34.pdf (138 KB)

SSP501.34 - KLA Resource Store Room - Type 4
