Technical Data
|
Acoustics
NL
NOISE LEVELSNoise levels within this space should be considered. Refer to DG / ACOUSTICS / INTERNAL NOISE LEVELS ROOM TO ROOM NOISENoise to and from adjacent rooms should be considered. ROOM ACOUSTICSRoom acoustics, particularly reverberation time should be considered. |
Ceiling
ACC
ACOUSTIC CEILING TYPEStandard ceiling. Refer to DG / CEILING |
Communications
CO
COMMUNICATIONS/TELEPHONE POINTS1 double data points required. Refer to DG / COMMUNICATIONS WIRELESS ACCESS POINTS |
|
Cooling
|
Doors
DT
DOOR TYPEHalf glass door to adjacent main area. Refer to DG / DOORS GLAZED DOORSHalf glazed door to adjacent main area. Refer to DG / DOORS |
Drainage
SD
SANITARY DRAINAGE FIXTURES1 Drainage outlet. Refer to DG / DRAINAGE |
|
Fire Protection
FD
FIRE DETECTION/ALARMSFire detection/alarms to comply with NCC. Refer to DG / THERMAL/SMOKE DETECTORS |
Floor
FF
FLOOR FINISHC - Carpet finish. Refer to DG / FLOOR |
|
|
Heating
H
HEATINGProvide heating where regionally appropriate. Refer to DG / HEATING |
Illumination
|
Keying
KY
KEYING GENERALKeyed alike - Library area (LIB). Refer to SG455 / DOOR HARDWARE / KEYING MASTER KEYINGMaster keyed - Administration and Staff facilities(AF). Refer to SG455 / DOOR HARDWARE / KEYING |
|
Light
N/A
|
Power
CM

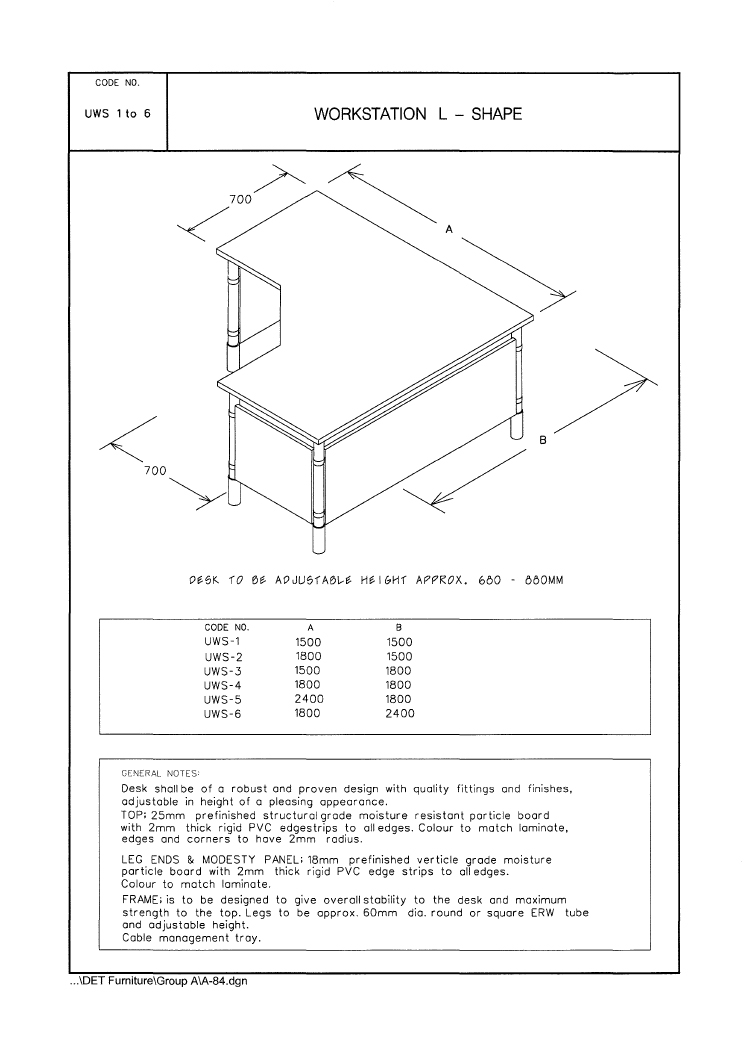

CABLE MANAGEMENTCable management to be considered. Refer to DG / POWER GENERAL POWER OUTLETS3 double socket outlets and 1 single sock outlet. Refer to DG / POWER |
|
|
Security
B
SECURITY LEVEL BCategory B - Moderately Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS |
Signs
DSF
DOOR SIGNAGE"OFFICE". Refer to DG / DOOR SIGNS WARNING SIGNRed writing and symbol “Warning – this fixture may deliver hot water which will scald.” -adjacent to the sink. Refer to DG / SIGNS |
Ventilation
NV
NATURAL VENTILATIONProvide Natural Ventilation. Refer to DG / VENTILATION and DG / AIR MOVEMENT / NATURAL VENTILATION |
|
Wall
OTH

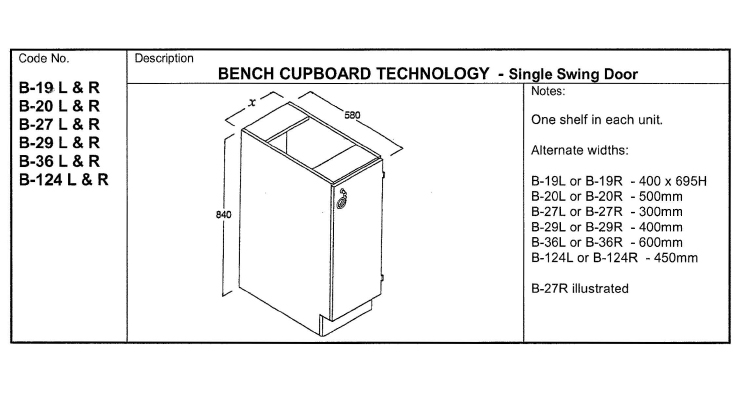

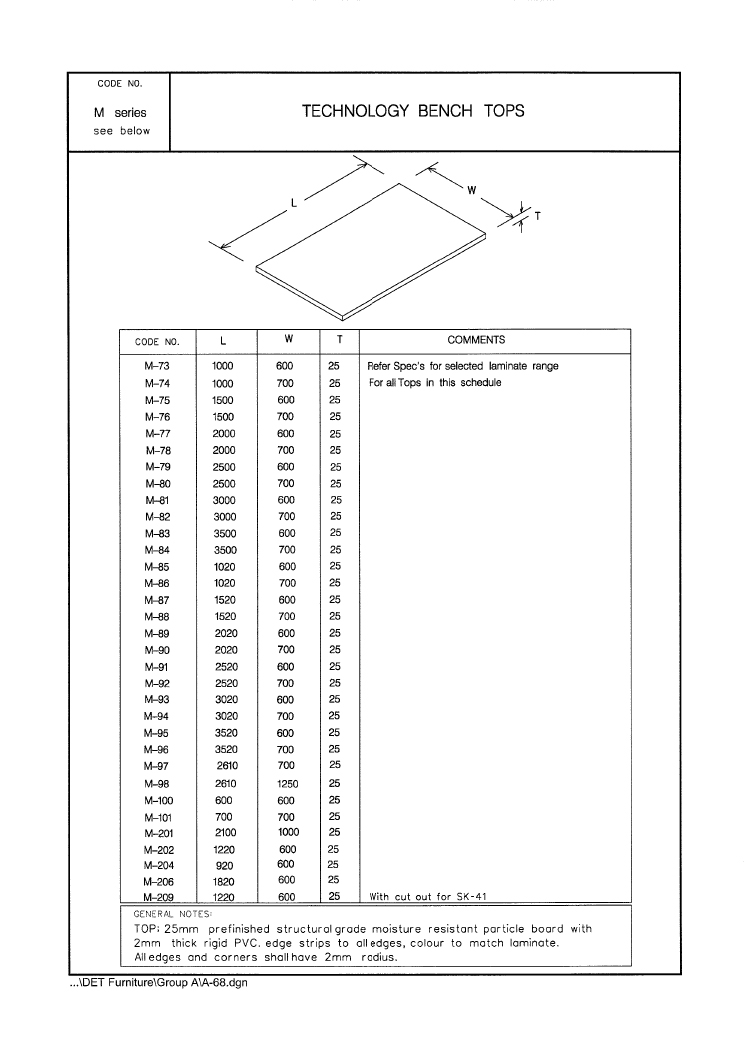

WALL - OTHER450mm high splashback to sink and bench. Refer to SG / LINING |
Water
HW

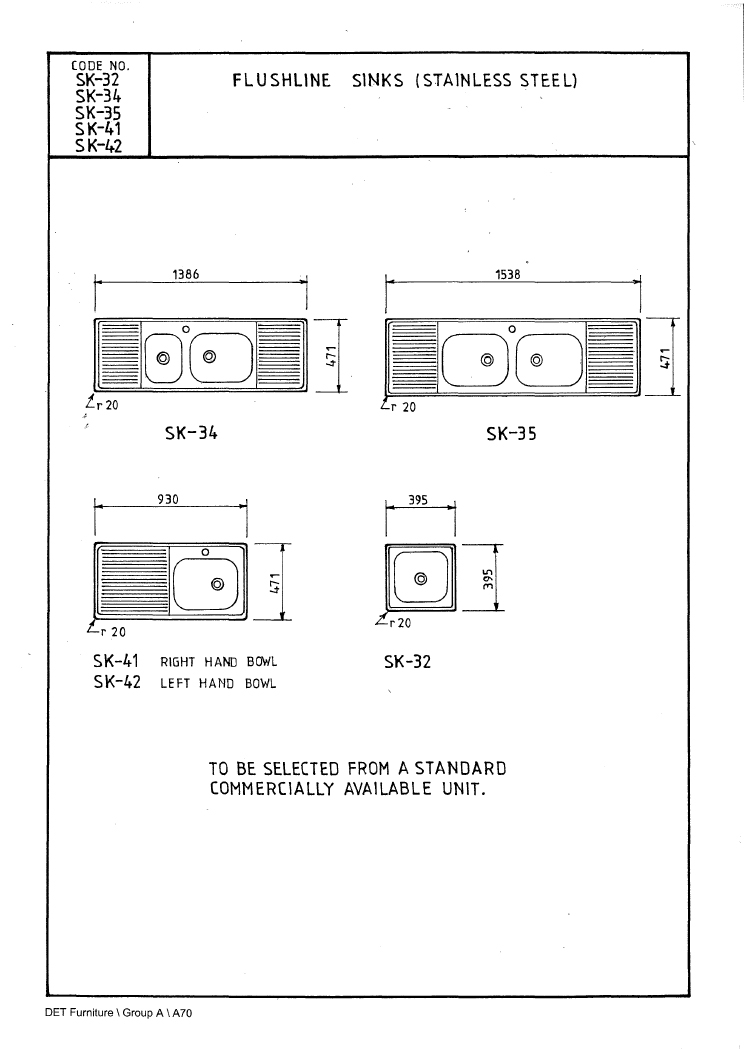

TEMPERED WATERRequired to 1 x sink. Refer to DG / WATER COLD WATERCW Required to 1 x sink, 1 x BWU. Refer to DG / WATER |
Windows
Y
WINDOWS - YWindows are required for this space. |
