SSP430.41

Personal Effects Storage - IO/IS/P

Personal Effects Storage – IO/IS/P refers to the space in which students’ personal items are kept on a daily basis.

Plans are also provided for various sizes – SSP430.41 and SSP430.42.

ROOM RELATIONSHIPS

This space is found in the Home Base Unit - IO/IS/P. The Personal Effects Storage – IO/IS/P should be located in close proximity to the Home Base or included as part of the Practical Activities Area.

Technical Data

Acoustics N/A	Ceiling ACC ACOUSTIC CEILING TYPE Standard ceiling. Refer to DG / CEILING	Communications N/A
Cooling N/A	Doors DT DOOR TYPE Open to adjacent area. Refer to DG / DOORS	Drainage N/A
Fire Protection FD FIRE DETECTION/ALARMS Fire detection/alarms to comply with NCC. Refer to DG / THERMAL/SMOKE DETECTORS	Floor FF FLOOR FINISH SVF - Foam backed Vinyl to match adjacent area. Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination LUX LUX LEVEL 160 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL To match adjacent area. Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING To match adjacent area. Refer to SG455 / DOOR HARDWARE / KEYING
Light N/A	Planning m^2 AREA Type 1 - 3 m2 Type 2 - 3 m2 Refer to DG / AREA OTH PLANNING - OTHER Provide access separate from through home bases. Refer to DG / AREA XY PROPORTION Space for storage associated with home bases. Refer to DG / AREA	Power N/A
Security A SECURITY LEVEL A Category A - Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS OTH SECURITY OTHER Include security category of adjacent area	Signs N/A	Ventilation N/A
Wall PF PINBOARD FINISH Maximise pinboard finish to 2100mm. Refer to SG / LINING	Water N/A	Windows OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS

Suggested Fixtures

There are no suggested fixtures for this space.

Suggested Furniture

ID	Description

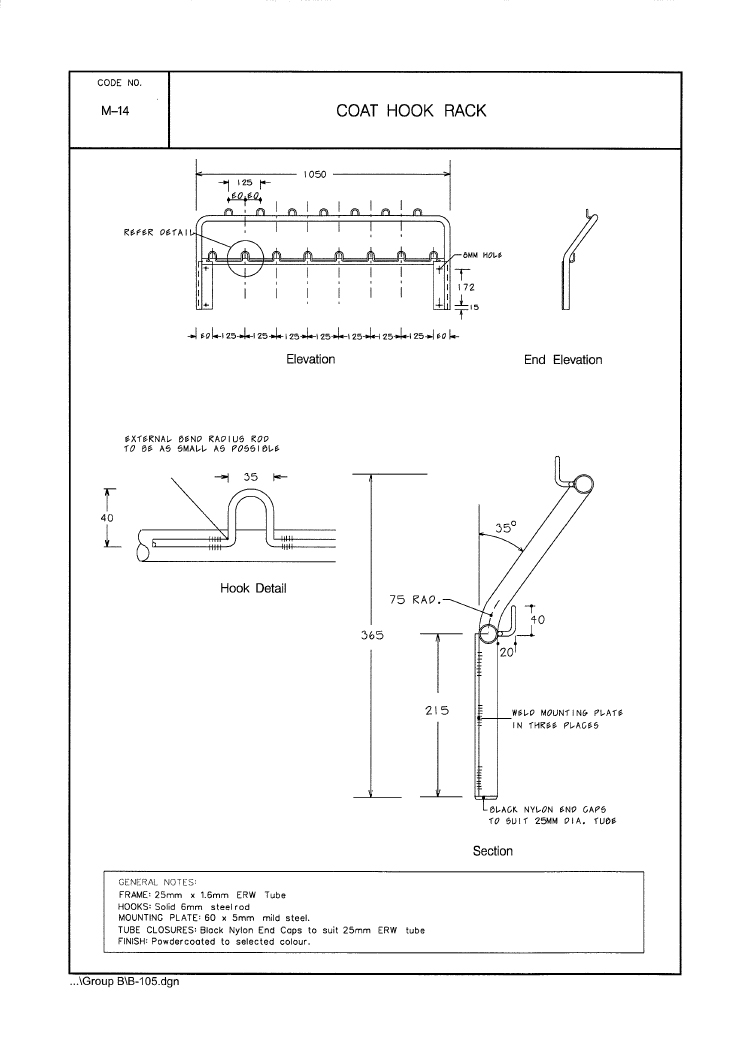

M-14	Fixed Rack, Coat Hooks	View image

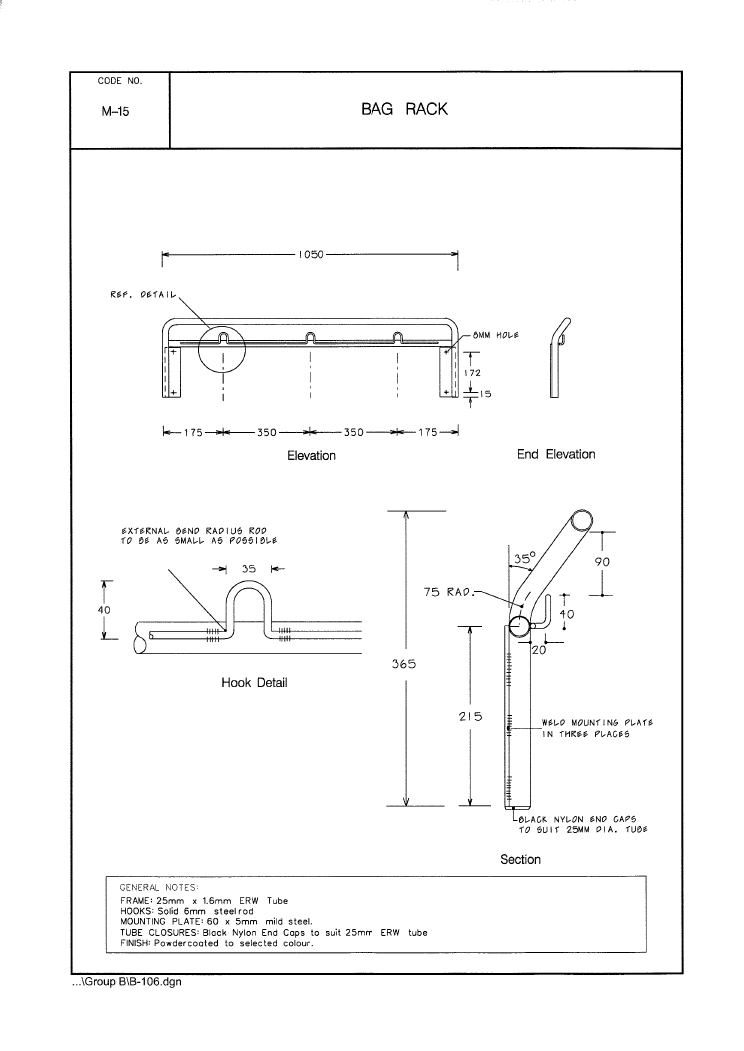

M-15	Fixed Rack, Bag Hooks	View image

Sample Plans & Details

SSP430.41 Personal Effects Storage - IO

ssp430-41.pdf

ssp430-41.pdf (156 KB)

SSP430.41 - Personal Effects Storage - IO

SSP430.42 Personal Effects Storage - IS/P

ssp430-42.pdf

ssp430-42.pdf (163 KB)

SSP430.42 - Personal Effects Storage - IS/P
