Kitchenette

Technical Data

Acoustics N/A	Ceiling ACC ACOUSTIC CEILING TYPE NRC: 0.6-0.8, absorptive ceiling. Refer to DG / CEILING	Communications CO COMMUNICATIONS/TELEPHONE POINTS 1 double data points required. Refer to DG / COMMUNICATIONS
Cooling FAN FAN Fan required. Refer to DG / COOLING POLICY / CEILING / WALL FANS MC MECHANICAL COOLING Provide mechanical cooling where regionally appropriate. Refer to DG / COOLING POLICY	Doors DT DOOR TYPE Acoustic operable wall may be included to adjacent space. Refer to DG / DOORS	Drainage SD SANITARY DRAINAGE FIXTURES 3 Drainage outlets. Refer to DG / DRAINAGE
Fire Protection FD FIRE DETECTION/ALARMS Fire detection/alarms to comply with NCC. Refer to DG / THERMAL/SMOKE DETECTORS PFE	Floor FF FLOOR FINISH SV - Sheet Vinyl(not foam backed). Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for Heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed alike - Learning Facilities (LF). Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Learning Space(LS). Refer to SG455 / DOOR HARDWARE / KEYING
Light N/A	Planning m^2 AREA 20 m2. Refer to DG / AREA OTH PLANNING - OTHER Provide separate access than through adjacent Special Programs room. Refer to DG / AREA XY PROPORTION May be designed as Alcove to adjacent Special Programs Room. Refer to DG / AREA	Power CM CABLE MANAGEMENT Cable management to be considered. Refer to DG / POWER GPO GENERAL POWER OUTLETS 2 double socket outlets and 3 single sock outlet. Refer to DG / POWER
Security B SECURITY LEVEL B Category B - Moderately Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE "KITCHENETTE". Refer to DG / DOOR SIGNS SIG SIGNS GENERAL "FIRE EXTINGUISHER IN STORE ROOM" to external face of door to store room if Extinguisher inside. Refer to DG / SIGNS	Ventilation NV NATURAL VENTILATION Provide Natural Ventilation. Refer to DG / VENTILATION and DG / AIR MOVEMENT / NATURAL VENTILATION
Wall PF PINBOARD FINISH Maximise linoleum/cork pinboard finish from 900mm or top of splashback to 2100mm. Refer to SG / LINING OTH WALL - OTHER Splashback 450mm high for Sinks and Benches (excluding when glazing is within the zone) Splashback for Basin. Refer to SG / LINING	Water HW TEMPERED WATER Tempered water required to 1 x basin, 2 x sinks. Refer to DG / WATER CW COLD WATER CW Required to 1 x basin, 2 x sinks, 1 x DW. Refer to DG / WATER	Windows OTH WINDOWS - OTHER Internal glazing to adjoining Special Programs area and direct adjoining spaces, sill height 1.2m. Flyscreens to all windows, except to other fly-screened spaces. Refer to DG / WINDOWS

ID	Description
B-00	Bench Cupboard, 920	View image

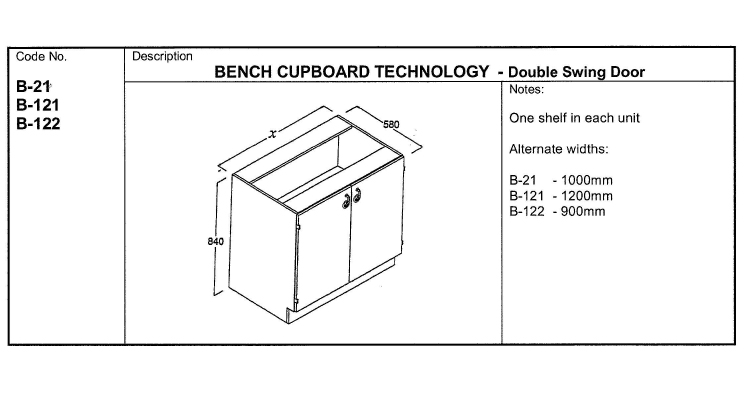

B-121	Fixed Bench Cupboard, Technology 1200	View image

B-122	Fixed Bench Cupboard, Technology 900	View image

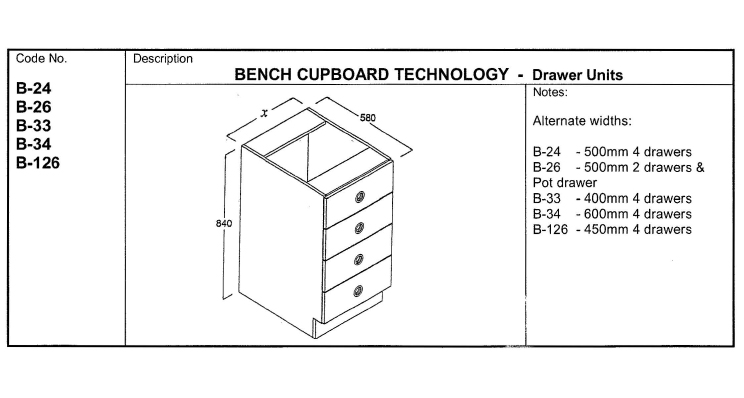

B-126	Fixed Bench Cupboard, Technology 450, 4 Drawers	View image

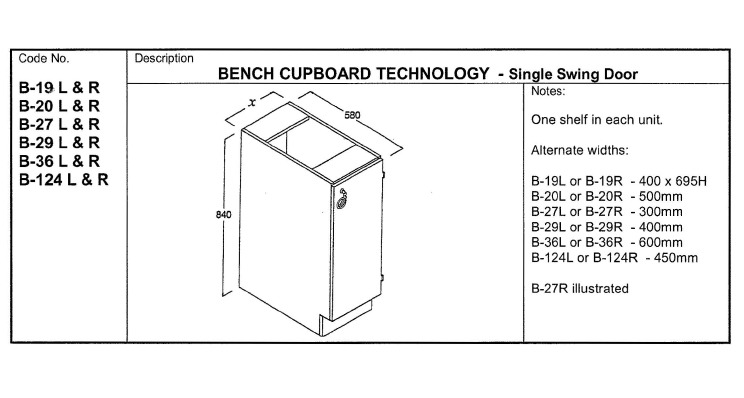

B-27L	Fixed Bench Cupboard, Technology 300, LH Door	View image

B-34	Fixed Bench Cupboard, Technology 400, 4 Drawers	View image

B-47L	Fixed Bench Cupboard, Technology 900, Corner Unit, LH Door	View image

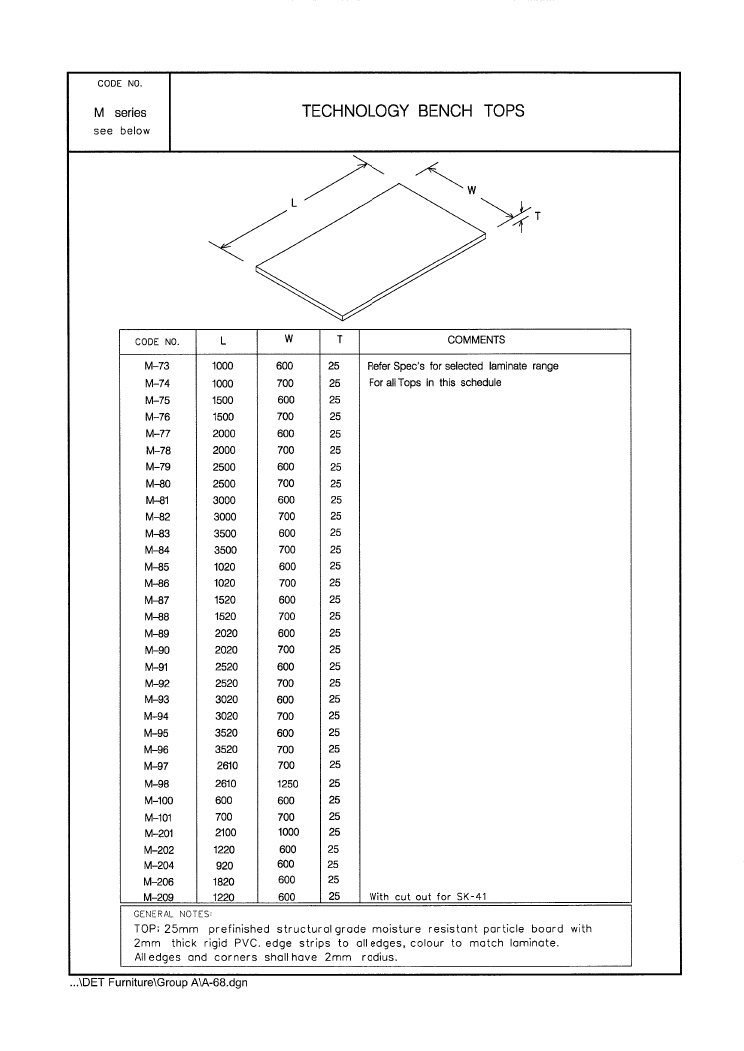

M-202	Fixed Top, Bench Technology, 1220 x 600	View image

M-75	Fixed Top, Bench Technology, 1500 x 600	View image

M-79	Fixed Top, Bench Technology, 2500 x 600	View image

SK-41	Fixed Sink, Right Hand Bowl	View image

Sp-00	Table, Adjustable, Low Range	View image

Sp-01	Table, Adjustable, Medium Range	View image

Sp-02	Table, Adjustable, High Range	View image

Sp-49	Fixed Bench, Height Adjustable (front wind), Kitchen	View image
