Laundry

The Laundry is a support space for students with disabilities and is designated for the cleaning of clothes and linen.

Plans are also provided for various sizes – HS603.09, HS603.10 and HS603.11.

ROOM RELATIONSHIPS

This space is found in the Student Amenities. This room should be adjacent to the Access Shower/Toilet/Change.

Technical Data

Acoustics N/A	Ceiling RES RESISTANCE Water Resistant Ceiling. Refer to DG / CEILING OTH CEILING - OTHER Ceilings to be easy clean. Refer to 'Suggested Fixtures' list and SG / METALWORK / CEILING HOOK ACC ACOUSTIC CEILING TYPE NRC: 0.6 - 0.8 Absorptive Ceiling. Refer to DG / CEILING	Communications N/A
Cooling FAN FAN Fan required. Refer to DG / COOLING POLICY / CEILING / WALL FANS	Doors DT DOOR TYPE Minimum 1m clear width Refer to DG / DOORS	Drainage SD SANITARY DRAINAGE FIXTURES 2 drainage outlets. Refer to DG / DRAINAGE
Fire Protection N/A	Floor FF FLOOR FINISH CT - Ceramic Tiles. Refer to DG / FLOOR FW FLOOR WASTE Floor waste(s) are to be included with falls in floor. Refer to DG / DRAINAGE (& TRADE WASTE) OTH FLOOR - OTHER Coved skirting tiles at wall Falls to floor waste. Tiles are to have flush joints and not to have a bevelled edge. Avoid abrupt changes in level. Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for water heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Lighting control requirements as outlined in Design Guide. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed Alike Toilets (T). Refer to SG / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration & Staff (AF). Refer to SG / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA Type 2 - 8m2 Type 3 - 6m2 Type 4 - 6m2 Refer to DG / AREA OTH PLANNING - OTHER Possible access through toilet space. Refer to DG / AREA	Power N/A
Security B SECURITY LEVEL B Category B - Moderately Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE "LAUNDRY" Refer to DG / DOOR SIGNS SIG SIGNS GENERAL Braille and Tactile signage as required by access regulations when using laundry to access toilets. Refer to DG / SIGNS	Ventilation EXH GENERAL EXHAUST General Exhaust required. Refer to DG / VENTILATION
Wall OTH WALL - OTHER Easy clean water resistant walls Splashback to Laundry Tub Refer to SG / LINING	Water HW HOT WATER Required to 1 x laundry tub, 1 x washing machine. Refer to DG / WATER CW COLD WATER Required to 1 x laundry tub, 1 x washing machine. Refer to DG / WATER	Windows OTH WINDOWS - OTHER If windows are included obscure glazing and ensure visual privacy when windows open Visual privacy in Laundry when en-suite to Shower/Toilet/Change Area, obscure glazing. Refer to DG / WINDOWS VP VISUAL PRIVACY Visual privacy is required from other spaces. Refer to DG / WINDOWS

Suggested Fixtures

LT, Single Stainless Steel Laundry Tub with cupboard.

Suggested Furniture

ID	Description

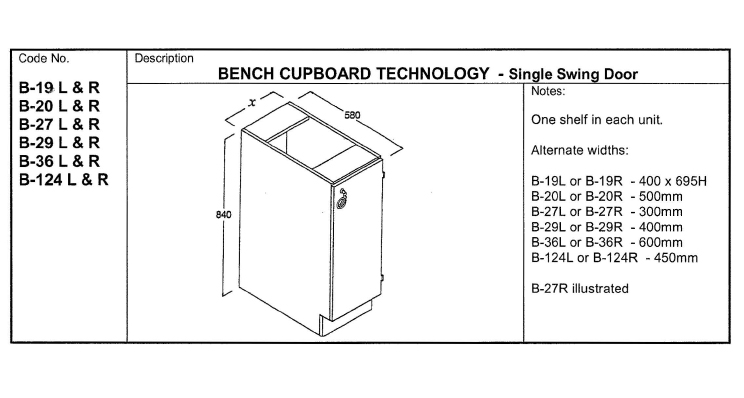

B-20L	Fixed Bench Cupboard, Technology 500, LH Door	View image

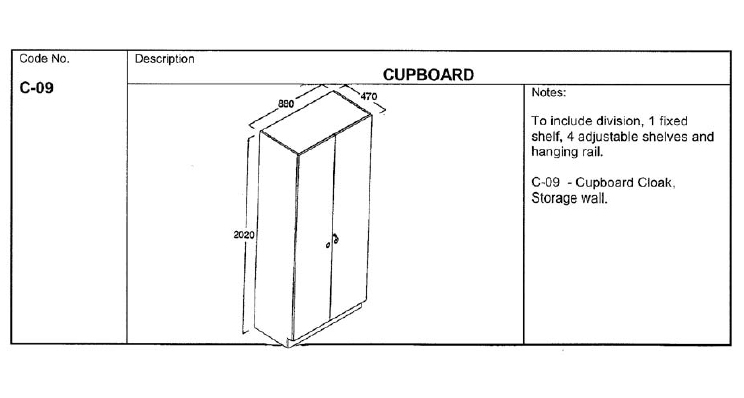

C-09	Cupboard, Cloak, Storage Wall	View image

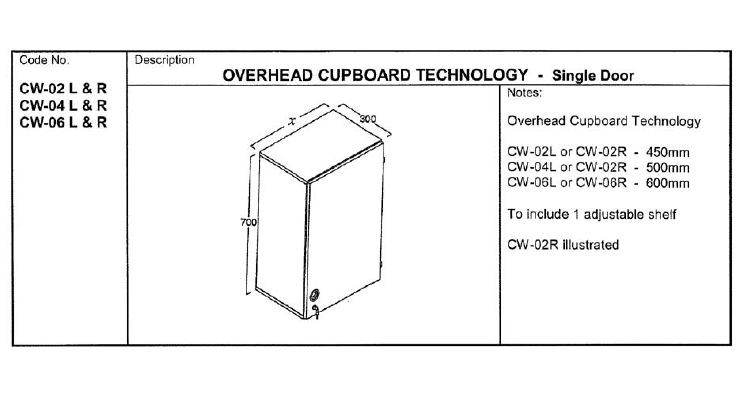

CW-04L	Fixed Overhead Cupboard, Technology 500, LH Door	View image

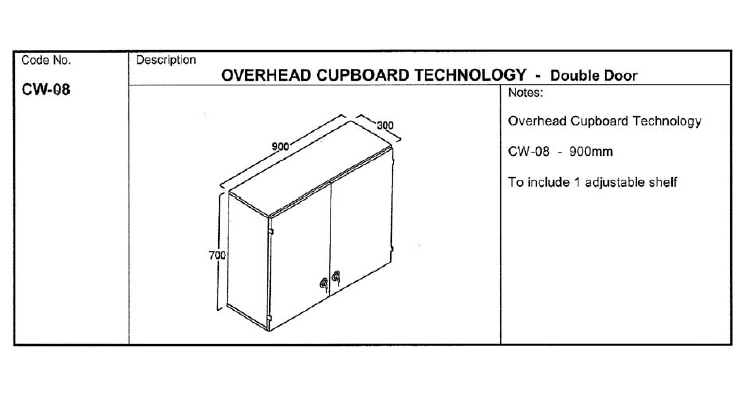

CW-08	Fixed Overhead Cupboard, Technology 900	View image

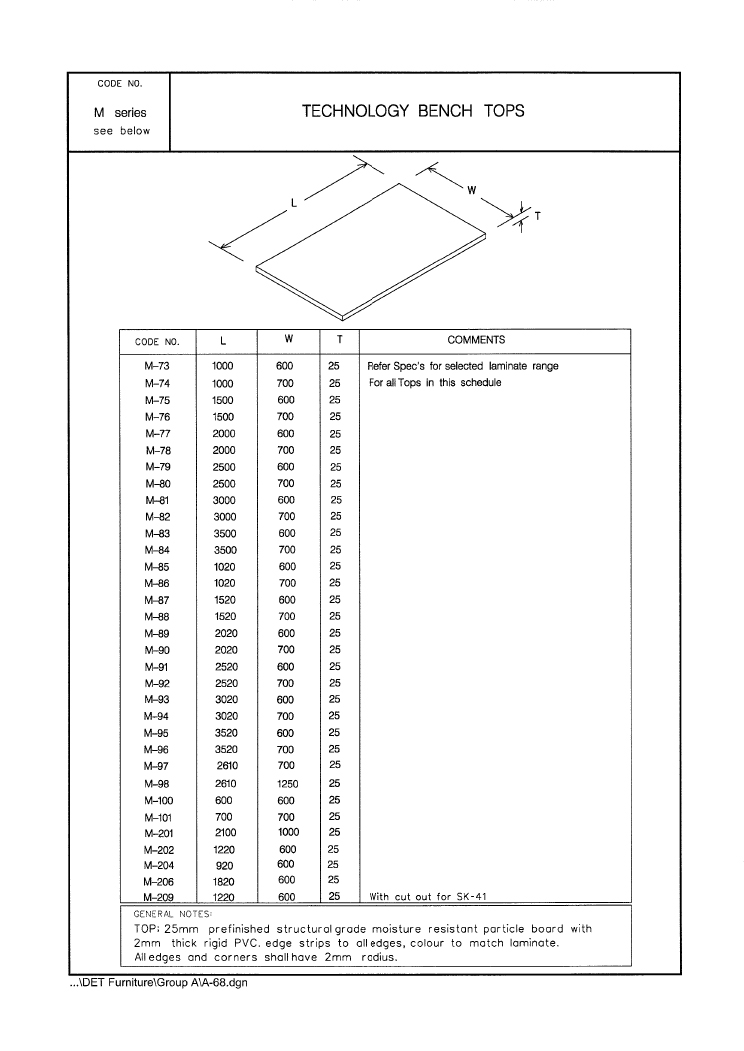

M-100	Fixed Top, Bench Technology, 600 x 600	View image

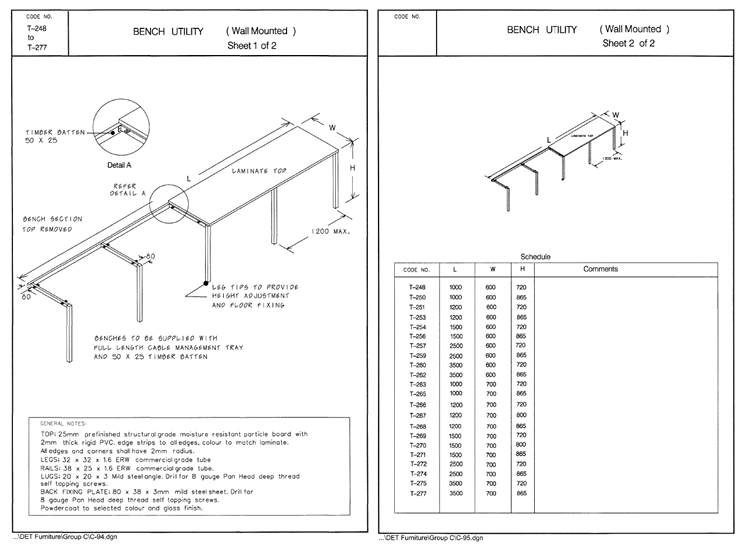

T-250	Fixed Bench, Utility (Wall Mounted), 1000 x 600 x 865	View image

SAMPLE PLANS & DETAILS

hs603-09.pdf

hs603-09.pdf (151 KB)

HS603.09 Laundry - Type 2

HS603.10 Laundry - Type 3

hs603-10.pdf

hs603-10.pdf (255 KB)

HS603.10 Laundry - Type 3

HS603.11 Laundry - Type 4

hs603-11.pdf

hs603-11.pdf (241 KB)

HS603.11 Laundry - Type 4
