Technical Data
|
Acoustics
NL
NOISE LEVELSNoise levels within this space should be considered. Refer to DG / ACOUSTICS / INTERNAL NOISE LEVELS ROOM TO ROOM NOISENoise to and from adjacent rooms should be considered. ROOM ACOUSTICSRoom acoustics, particularly reverberation time should be considered. |
Ceiling
ACC
ACOUSTIC CEILING TYPEStandard ceiling. Refer to DG / CEILING |
Communications
CO
COMMUNICATIONS/TELEPHONE POINTS2 double data points required. Refer to DG / COMMUNICATIONS AUDIO VISUAL REQUIREMENTSAudio visual requirements and considerations apply. Refer to DG / COMMUNICATIONS WIRELESS ACCESS POINTS |
|
Cooling
|
Doors
DT
DOOR TYPEDouble door to adjacent Staff Study and Circulation area. Additional exit door directly to outside may be required to meet regulations. Refer to DG / DOORS |
Drainage
SD
SANITARY DRAINAGE FIXTURES2 drainage outlets. Refer to DG / DRAINAGE |
|
Fire Protection
PFE
PORTABLE FIRE EXTINGUISHER/ BLANKETPortable fire extinguisher/fire blanket - to comply with NCC. FIRE HOSE REELFire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT |
Floor
FF
FLOOR FINISHCP - Carpet finish. ISF - Industrial sheet flooring to Kitchen area. Refer to DG / FLOOR |
|
|
Heating
H
HEATINGProvide heating where regionally appropriate. Refer to DG / HEATING |
Illumination
|
Keying
KY
KEYING GENERALKeyed Alike Staff Studies (SS). Refer to SG / DOOR HARDWARE / KEYING MASTER KEYINGMaster keyed - Administration & Staff (AF). Refer to SG / DOOR HARDWARE / KEYING |
|
Light
DL
DAYLIGHTDaylight is recommended for this space. |
Power
CM
CABLE MANAGEMENTCable management to be considered. Refer to DG / POWER GENERAL POWER OUTLETS5 double socket outlets, 5 single socket outlets. Refer to DG / POWER |
|
|
Security
A
SECURITY LEVEL ACategory A - Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS |
Signs
DSF
DOOR SIGNAGE"STAFF" Refer to DG / DOOR SIGNS SIGNS GENERALWARNING SIGN Sign with red writing and symbol “Warning – this fixture may deliver hot water which will scald.” -adjacent to the sink. Refer to DG / SIGNS |
Ventilation
OTH
VENTILATION - OTHERRefer to DG / VENTILATION |
|

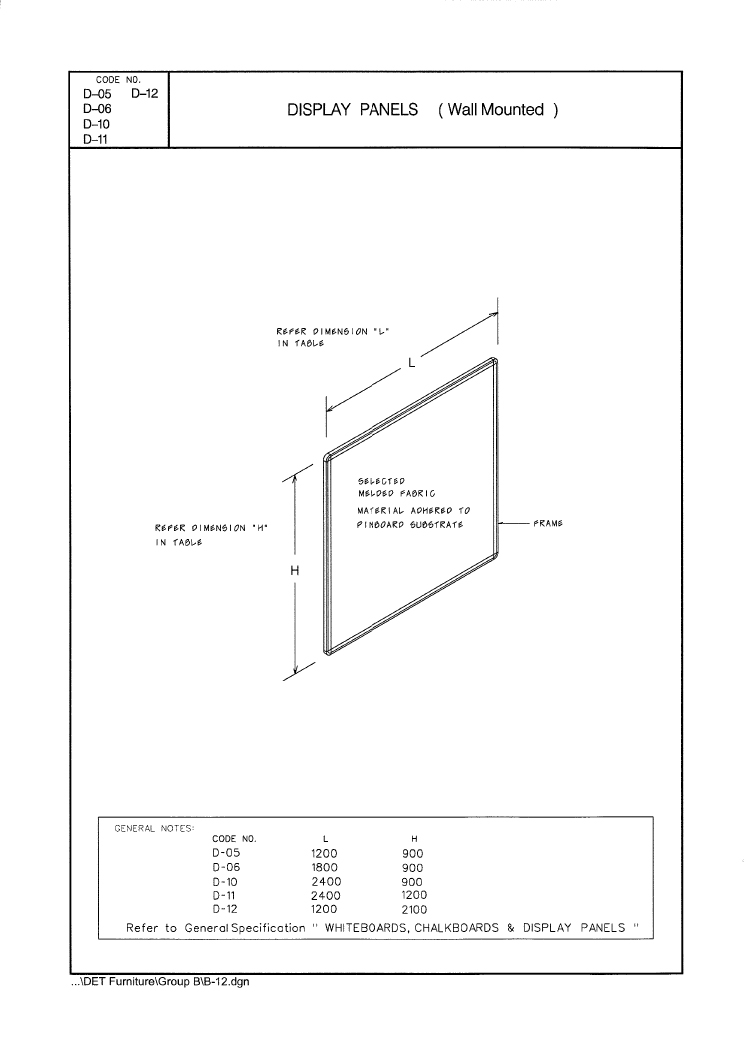

Wall
OTH

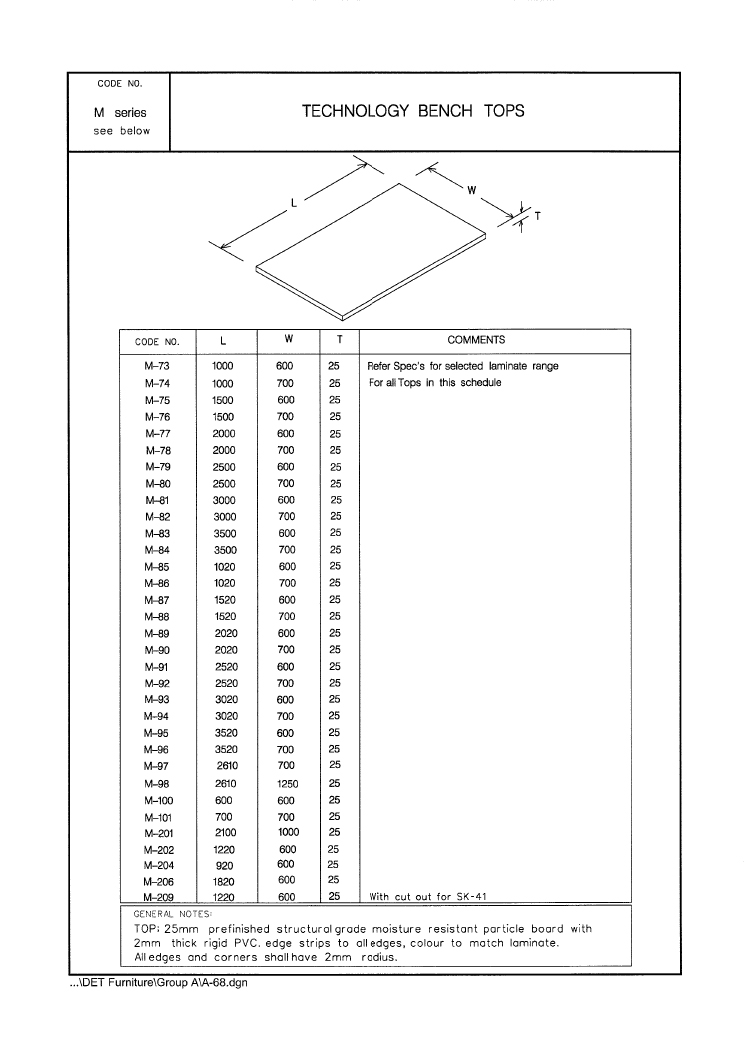

WALL - OTHER450mm high Splashback to Sink and Bench. Refer to SG / LINING |
Water
HW
HOT WATERHot water required to 2 x sinks. Refer to DG / WATER COLD WATERRequired to 2 x sinks, 2 x BWUs, 1 x dishwasher. Refer to DG / WATER |
Windows
Y
WINDOWS - YWindows are required for this space. |
