Technical Data

Acoustics NL NOISE LEVELS Noise levels within this space should be considered. Refer to DG / ACOUSTICS / INTERNAL NOISE LEVELS	Ceiling ACC ACOUSTIC CEILING TYPE NRC: 0.6 - 0.8 Absorptive Ceiling. Refer to DG / CEILING	Communications CO COMMUNICATIONS/TELEPHONE POINTS Data points required. Refer to DG / COMMUNICATIONS AV AUDIO VISUAL REQUIREMENTS Audio visual facilites are required for Clinic monitoring where passive surveilance is not possible. Refer to DG / COMMUNICATIONS WAP WIRELESS ACCESS POINTS This room is to be wireless enabled. Refer to DG / COMMUNICATIONS
Cooling FAN FAN Fan required. Refer to DG / COOLING POLICY / CEILING / WALL FANS MC MECHANICAL COOLING Provide mechanical cooling where regionally appropriate. Refer to DG / COOLING POLICY	Doors DT DOOR TYPE Reception Counters to have security roller shutters open to adjacent utility space. Refer to DG / DOORS	Drainage N/A
Fire Protection PFE PORTABLE FIRE EXTINGUISHER/ BLANKET Portable fire extinguisher and Fire blanket are required within building Comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH CP - Carpet finish. Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Lighting control requirements as outlined in Design Guide. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed Alike Administration -Clerical (AC). Refer to SG / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration & Staff (AF). Refer to SG / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA Type 1 - 46m2 Type 2 - 35m2 Type 3 - 46m2 Refer to DG / Area OTH PLANNING - OTHER Positioned adjacent to Public and Student Reception. Refer to DG / Area XY PROPORTION Open office area; minimum 5m2 per person. Refer to DG / Area	Power CM CABLE MANAGEMENT Cable management to be considered. Refer to DG / POWER GPO GENERAL POWER OUTLETS For guidelines refer to Design Guide. Refer to DG / POWER
Security C SECURITY LEVEL C Category C - Medium Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS CTV CCTV CAMERAS CCTV cameras are required in this space. Refer to DG / SPECIAL ELECTRICAL SYSTEMS	Signs DSF DOOR SIGNAGE "AUTHORISED STAFF ONLY" (to both doors into corridor). Refer to DG / DOOR SIGNS	Ventilation OTH VENTILATION - OTHER Refer to Design Guide for specific ventilation requirements. Refer to DG / VENTILATION
Wall N/A	Water N/A	Windows Y WINDOWS - Y Windows are required for this space. Refer to DG / WINDOWS OTH WINDOWS - OTHER External glazing recommended Reception window opening to adjacent Student and Public receptions, lockable, laminated glass framed sliding windows, top of recessed track flush with top of Counter. Reception windows to also have security roller shutter. Refer to DG / WINDOWS

ID	Description
B-21	Fixed Bench Cupboard, Technology 1000	View image

B-24	Fixed Bench Cupboard, Technology 500, 4 Drawers	View image

B-33	Fixed Bench Cupboard, Technology 400, 4 Drawers	View image

B-34	Fixed Bench Cupboard, Technology 400, 4 Drawers	View image

B-36L	Fixed Bench Cupboard, Technology 600, LH Door	View image

B-36R	Fixed Bench Cupboard, Technology 600, RH Door	View image

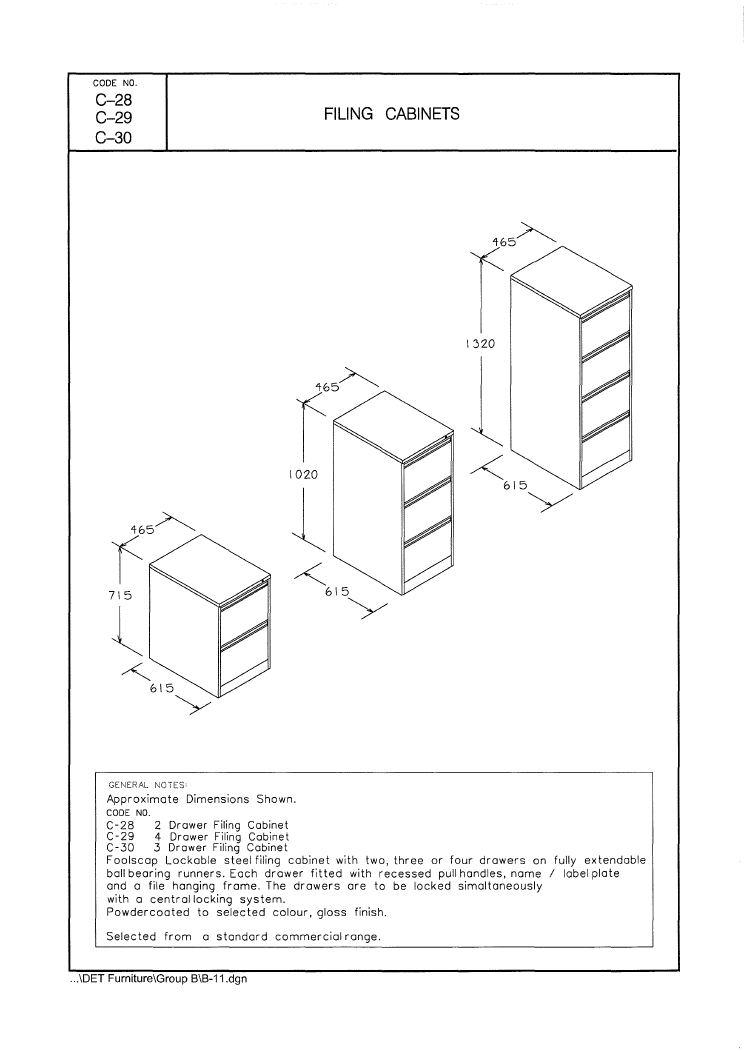

C-30	Cabinet, Foolscap Filing, 3 Drawer	View image

L-04	Student Lockers, 4 Door, High	View image

S-14	Chair, Swivel, Gas (without Arms)	View image

S-34	Drafting Stool, Gas-Lift	View image

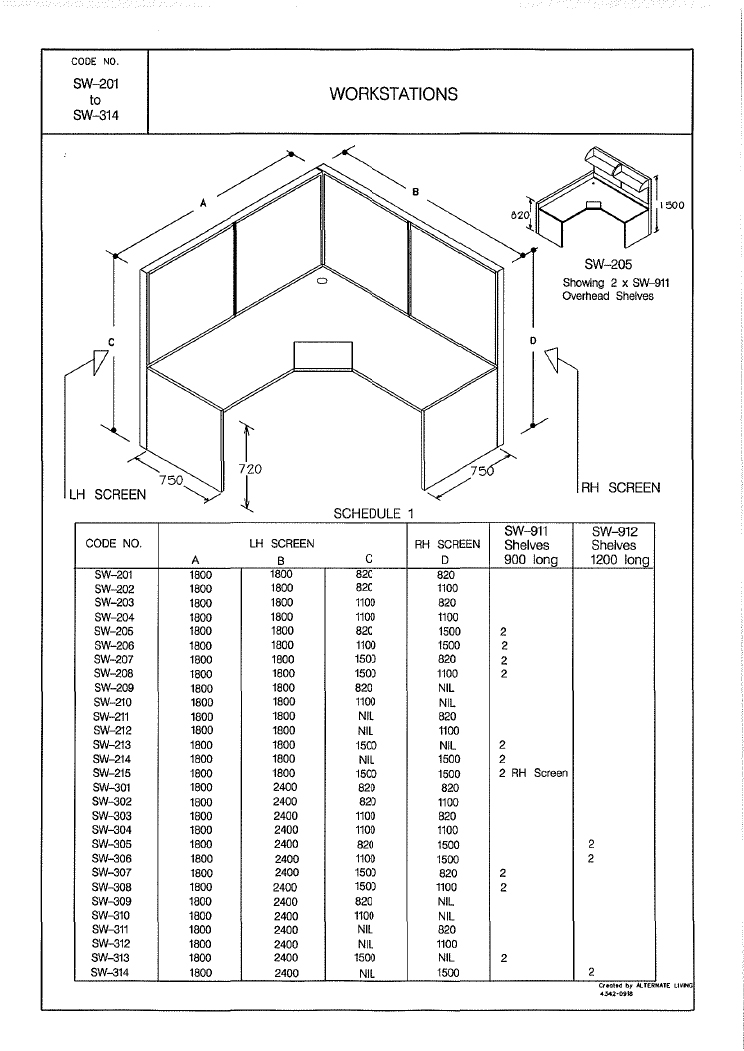

SW-306	Workstation, LH 1800 x RH 2400, LH Screen 1800 long x 1100 high, RH Screen 2400 long x 1500 high with 2 shelf units.	View image

SW-307	Workstation, LH 1800 x RH 2400, LH Screen 1800 long x1500 high with 2 shelf units, RH Screen 2400 long x 820 high.	View image

SW-309	Workstation, LH 1800 x RH 2400, LH Screen 1800 long x 820 high, No RH Screen.	View image

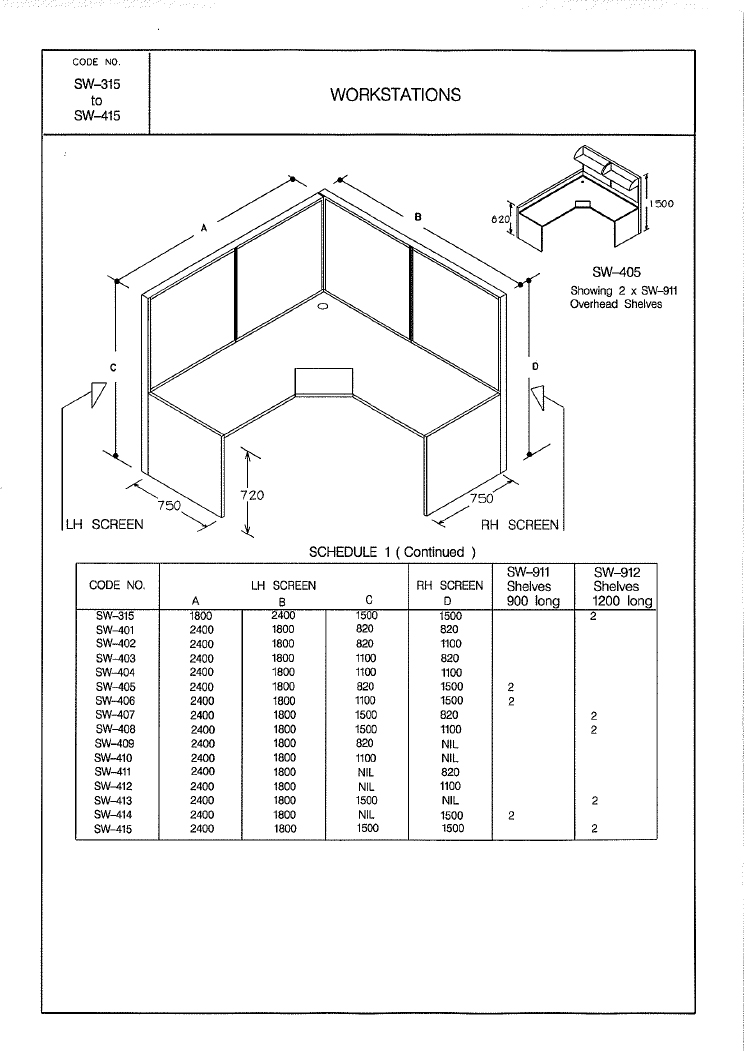

SW-403	Workstation, LH 2400 x RH 1800, LH Screen 2400 long x 1100 high, RH Screen 1800 long x 820 high.	View image

SW-405	Workstation, LH 2400 x RH 1800, LH Screen 2400 long x 820 high, RH Screen 1800 long x 1500 high with 2 shelf units.	View image

SW-406	Workstation, LH 2400 x RH 1800, LH Screen 2400 long x 1100 high, RH Screen 1800 long x 1500 high with 2 shelf units.	View image

SW-407	Workstation, LH 2400 x RH 1800, LH Screen 2400 long x 1500 high with 2 shelf units, RH Screen 1800 long x 820 high.	View image

SW-409	Workstation, LH 2400 x RH 1800, LH Screen 2400 long x 820 high, No RH Screen.	View image

SW-412	Workstation, LH 2400 x RH 1800, No LH Screen, RH Screen 1800 long x 1100 high.	View image

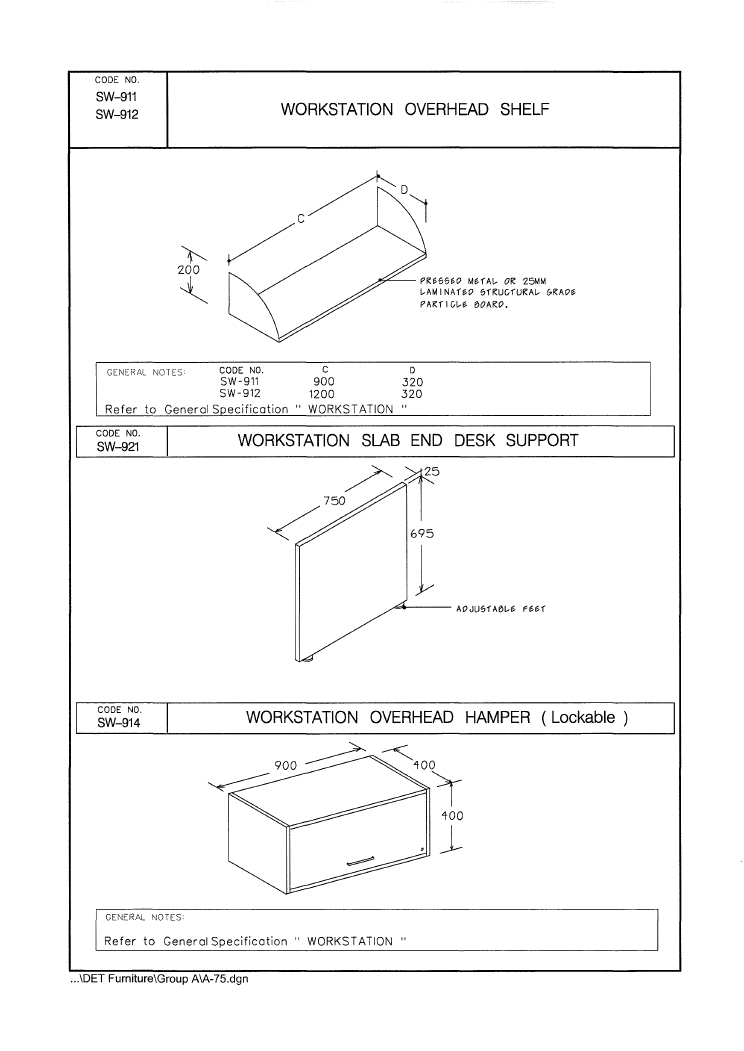

SW-911	Single Overhead Shelf, 900 long x 320 deep.	View image

SW-912	Single Overhead Long Shelf, 1200 long x 320 deep.	View image

SW-932	End Mid Screen, 800 long x 1100 high.	View image

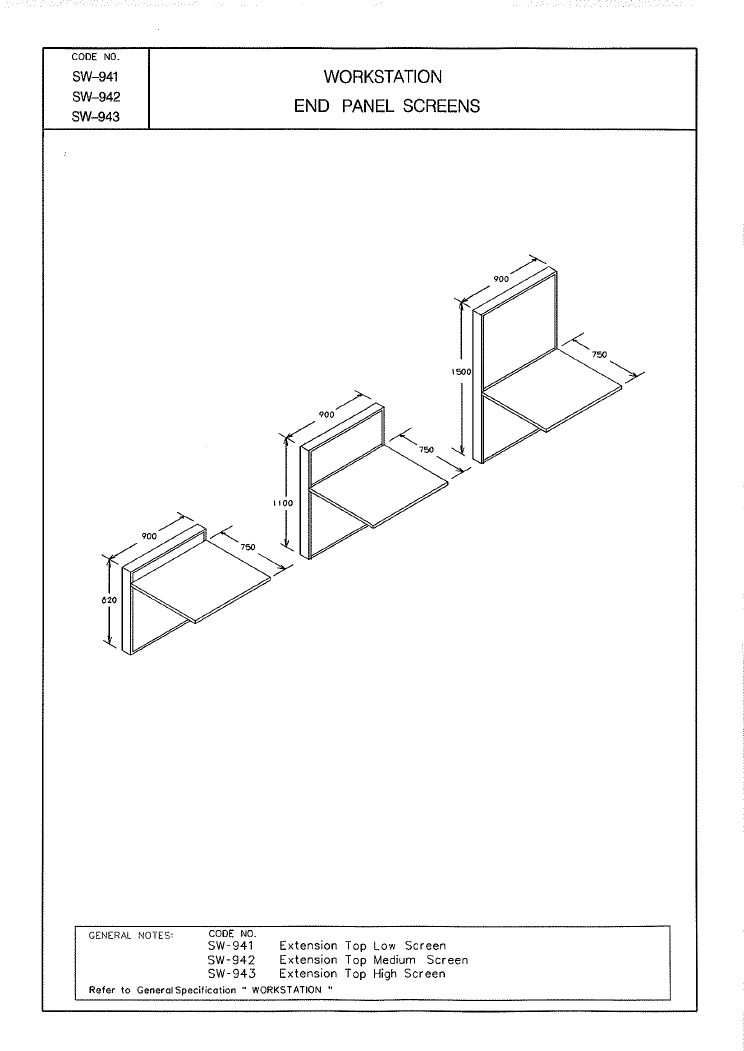

SW-941	Extension Top and Low Screen, 900 long x 820 high.	View image

T-88	Table, Pedestal, Mobile, 2 Drawer and File Drawer	View image

Description

B-21

Fixed Bench Cupboard, Technology 1000

View image
