HS506.05

Covered Area - Agriculture

The Covered Area - Agriculture is a supplementary learning space where students can prepare for or clean up after activities relating to Agriculture.

ROOM RELATIONSHIPS

This space is found in the Agriculture Learning Unit. The Covered Area - Agriculture should have direct access to the Class Tools Storage and access to the Animal Space, Plant Space and Shed Workshops.

Technical Data

Acoustics N/A	Ceiling N/A	Communications N/A
Cooling N/A	Doors DT DOOR TYPE Provide mesh double gates to outside. Space must be totally secure. Refer to DG / DOORS	Drainage OTH DRAINAGE - OTHER Surface suitable for hosing out. Refer to DG / DRAINAGE SD SANITARY DRAINAGE FIXTURES 1 drainage outlet. Refer to DG / DRAINAGE
Fire Protection N/A	Floor FF FLOOR FINISH CC - Steel troweled Concrete floor well graded to enable hosing out. Refer to DG / FLOOR OTH FLOOR - OTHER Grade floor to outside for drainage. Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination OTH ILLUMINATION - OTHER Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed Alike Agriculture Unit (AG). Refer to SG / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Learning Spaces (LS). Refer to SG / DOOR HARDWARE / KEYING
Light N/A	Planning m^2 AREA 26m2 Refer to DG / AREA OTH PLANNING OTHER Access to adjacent Class Tools Storage from this space. Refer to DG / AREA XY PROPORTION To accommodate 3.5m radius semi-circular demonstration group. Covered for rain and sun protection. Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS 1 double socket outlet. Refer to DG / POWER
Security A SECURITY LEVEL A Category A - Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs N/A	Ventilation N/A
Wall OTH WALL - OTHER Water resistant walls to 1m, Stainless Steel Splashback 300mm high to wash trough. Refer to SG / LINING	Water CW COLD WATER Required to 1 x wash trough, 1 x safety shower hose, 1 x hose cock. Refer to DG / WATER	Windows N/A

Suggested Fixtures

Stainless steel Wash Trough with minimum 3 pillar cocks, 1 Drinking Fountain and 1 flexible Safety Shower hose. Similar to SG DRAWING / SG603/3.

Suggested Furniture

ID	Description

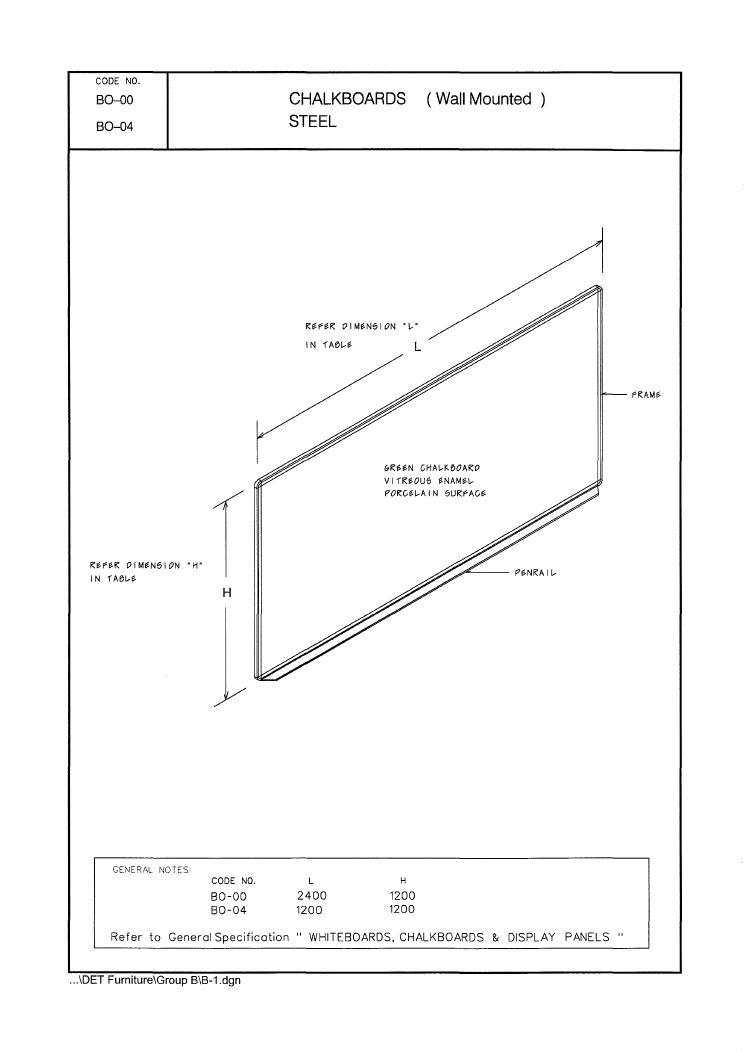

Bo-00	Fixed Chalkboard, Steel, 2400	View image

D-05	Fixed Display Panel, Fabric, with frame, 1200	View image

SAMPLE PLANS & DETAILS

hs506-05.pdf

hs506-05.pdf (167 KB)

HS506.05 Covered Area - Agriculture
