HS506.03

Animal Space

The Animal Space is a utilitarian support space which provides housing for a small range of animals and the storage of their feed stocks.

ROOM RELATIONSHIPS

This space is found in the Agriculture Learning Unit. The Animal Space should have access to the agricultural Covered Area.

Technical Data

Acoustics N/A	Ceiling N/A	Communications N/A
Cooling N/A	Doors DT DOOR TYPE Lockable, Bird proof door, rodent resistant to 1m high min. Refer to DG / DOORS	Drainage OTH DRAINAGE - OTHER Dish drain to perimeter, fall to openings. Refer to DG / DRAINAGE
Fire Protection N/A	Floor FF FLOOR FINISH CC - Steel troweled Concrete floor well graded to enable hosing out. Refer to DG / FLOOR OTH FLOOR - OTHER Grade floor to perimeter dish drain. Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 160 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Lighting control requirements as outlined in Design Guide. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed Alike Agriculture Unit (AG). Refer to SG / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Learning Spaces (LS). Refer to SG / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA 24m2 Refer to DG / AREA OTH PLANNING OTHER Rodent-resistant, utilitarian, adaptable. Refer to DG / AREA XY PROPORTION Minimum 2.4m head clearance is preferred. Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS 2 double socket outlets. Refer to DG / POWER
Security B SECURITY LEVEL B Category B - Moderately Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs N/A	Ventilation OTH VENTILATION - OTHER Refer to DG / VENTILATION
Wall OTH WALL - OTHER Walls to be Pig and water resistant to 1m to enable hosing out etc. Refer to SG / LINING IR IMPACT RESISTANCE Impact resistant walls are recommended. Refer to DG / FABRIC	Water OTH WATER - OTHER 50 litre gravity pressure tank, ball-cock control, 20mm diameter header outlet at 2.1m for future low-pressure drinkers Refer to DG / WATER CW COLD WATER Required to 1 x hose cock Refer to DG / WATER	Windows OTH WINDOWS - OTHER Ventilation openings required with minimum open area of 15% of floor area, preferable 20%. Refer to DG / WINDOWS

Suggested Fixtures

MPP, Moveable Panels to form Pens (eg. welded mesh).

Suggested Furniture

ID	Description

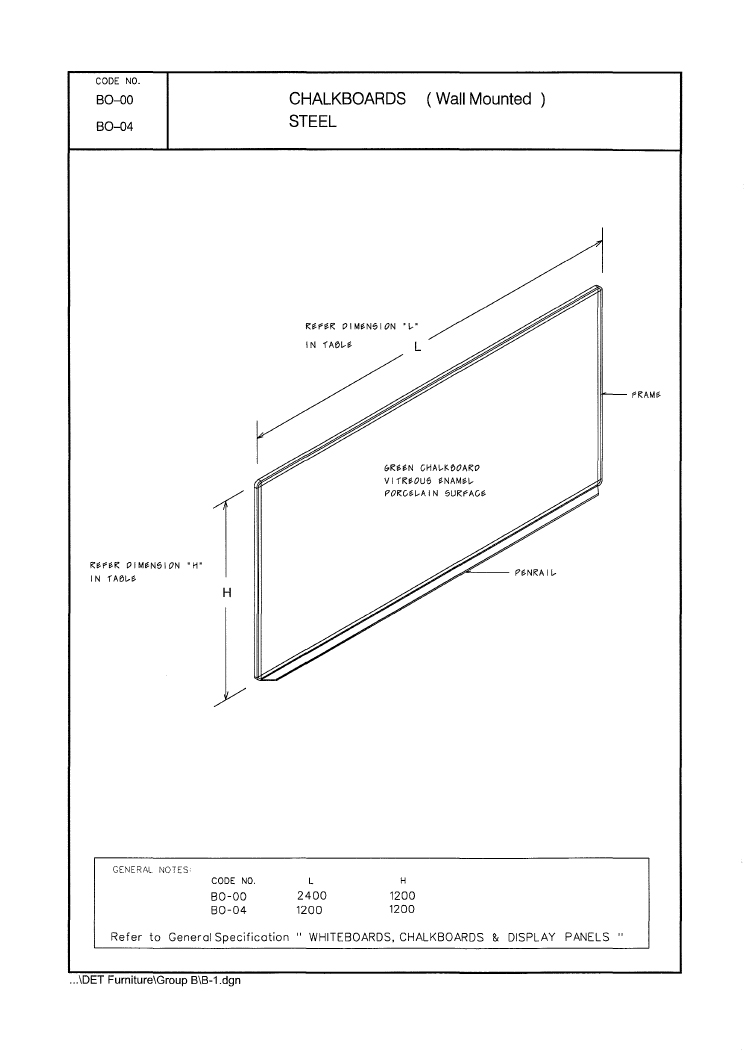

Bo-00	Fixed Chalkboard, Steel, 2400	View image

SAMPLE PLANS & DETAILS

hs506-03.pdf

hs506-03.pdf (207 KB)

HS506.03 Animal Space
