HS506.01

Agriculture Shed Workshop

The Agriculture Shed Workshop is a large space which should provide secure garaging of equipment used in agriculture, including tractors and their implements. Workbenches for the maintenance of agricultural equipment are required along with provision for the storage of agricultural materials.

ROOM RELATIONSHIPS

This space is found in the Agriculture Learning Unit. The Agriculture Shed Workshop should be readily accessible via a large opening to the agricultural field area.

Technical Data

Acoustics N/A	Ceiling N/A	Communications N/A
Cooling N/A	Doors DT DOOR TYPE 2.7m minimum height for medium tractors with roll bar & exhaust. 4.2m minimum width to facilitate entry of machinery. Provide additional personal entry door. Roller shutters to be heavy duty, lockable & secure. Refer to DG / DOORS	Drainage N/A
Fire Protection PFE PORTABLE FIRE EXTINGUISHER/ BLANKET Portable fire extinguisher/fire blanket - to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH Concrete Floor - (C). Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination LUX LUX LEVEL 160 lux Refer to DG / LIGHTING LC LIGHTING CONTROL Lighting control requirements as outlined in Design Guide. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed to Differ (KD). Refer to SG / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Learning Spaces (LS). Refer to SG / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA 35m2 Refer to DG / AREA OTH PLANNING - OTHER Utilitarian, adaptable, moderate-life. Floor resistant to weight of machinery (min 2000kg). Concrete apron outside entry. Refer to DG / AREA XY PROPORTION 6m minimum length to accommodate tractor. 3m preferred ceiling height. Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS 2 double socket outlets. Refer to DG / POWER
Security C SECURITY LEVEL C Category C - Medium Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs SIG SIGNS GENERAL SAFETY SIGNAGE Hazard danger sign "TOXIC" plus Notice "FOR STORAGE OF PESTICIDES, HERBICIDES AND TOXIC CHEMICALS", on the 100 Litre Cupboard for Flammable Liquids. Hazardous Materials sign "FLAMMABLE LIQUID" - class 3, on the exterior of door. Refer to DG / SIGNS	Ventilation N/A
Wall IR IMPACT RESISTANCE Impact resistant walls are recommended. Refer to DG / FABRIC	Water N/A	Windows N WINDOWS - N Windows are not required for this space. Refer to DG / WINDOWS OTH WINDOWS - OTHER If windows are included obscure glazing and security grills are required. Refer to DG / WINDOWS VP VISUAL PRIVACY Visual privacy is required from other spaces. Refer to DG / WINDOWS

Suggested Fixtures

CFL 250, Flammable Liquids Cabinet (250 litre)
CFL 100, Flammable Liquids Cabinet (100 litre)

Suggested Furniture

ID	Description
B-86	Bench, Workshop Demonstration	View image

C-31	Fixed Cabinet, Tool	View image

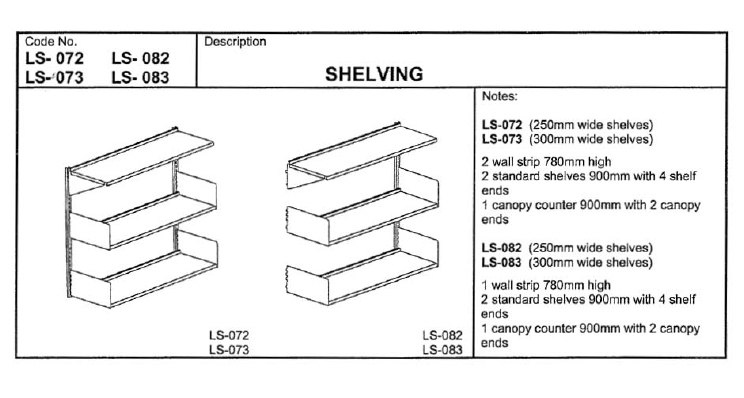

LS-072	Fixed Shelving, 800mm, Wall Fixed, Starting Bay with 2 Std 250mm Shelves, 1 Canopy 300mm	View image

LS-082	Fixed Shelving, 800mm, Wall Fixed, Starting Bay with 2 Std 250mm Shelves, 1 Canopy 300mm	View image

M-02	Fixed Pegboard Panel	View image

SAMPLE PLANS & DETAILS

hs506-01.pdf

hs506-01.pdf (153 KB)

HS506.01 Agriculture Shed Workshop
