HS502.12

First Aid

The First Aid room should provide fixtures and facilities for initial first aid treatment.

ROOM RELATIONSHIPS

This space is found in the Sports & Performance Unit. The First Aid room should have direct access to the Gymnasium.

Technical Data

Acoustics N/A	Ceiling ACC ACOUSTIC CEILING TYPE NRC: 0.6 - 0.8 Absorptive Ceiling. Refer to DG / CEILING	Communications CO COMMUNICATIONS/TELEPHONE POINTS 1 double data point required. Refer to DG / COMMUNICATIONS
Cooling N/A	Doors N/A	Drainage SD SANITARY DRAINAGE FIXTURES 1 drainage outlet. Refer to DG / DRAINAGE
Fire Protection FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH Industrial Sheet Flooring (ISF). Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Lighting control requirements as outlined in Design Guide. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed Alike - Movement Complex (MV). Refer to SG / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration and Staff Facilities (AF). Refer to SG / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA 13m2 Refer to DG / AREA OTH PLANNING - OTHER Located adjacent to Gymnasium and Gymnasium reception. Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS 2 double socket outlets. Refer to DG / POWER
Security A SECURITY LEVEL A Category A - Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE "FIRST AID". Refer to DG / DOOR SIGNS	Ventilation N/A
Wall OTH WALL - OTHER 450mm high splashback to Sink and Bench. Refer to SG / LINING	Water HW TEMPERED WATER Required to 1 x sink. Refer to DG / WATER CW COLD WATER Required to 1 x sink. Refer to DG / WATER	Windows OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS OTH WINDOWS - OTHER Reception Opening, 1800mm wide X 1200mm high at 900mm, near Gymnasium Entry, transparent openable and lockable. Observation panel (impact resistant polycarbonate) to Gymnasium, 500mm wide 900mm high at 900mm above floor. Refer to DG / WINDOWS

Suggested Fixtures

Holland Blinds to Windows

Suggested Furniture

ID	Description

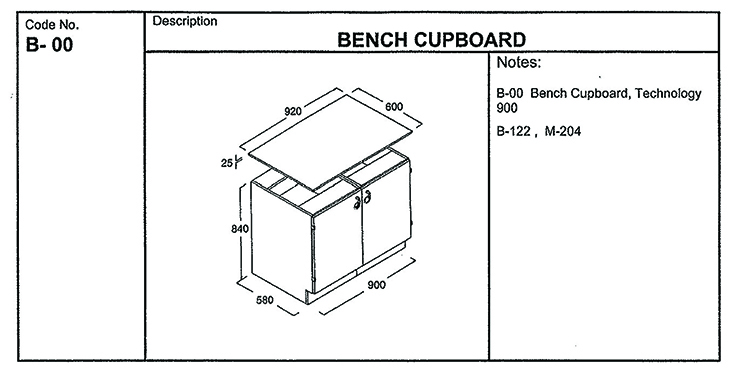

B-00	Bench Cupboard, 920	View image

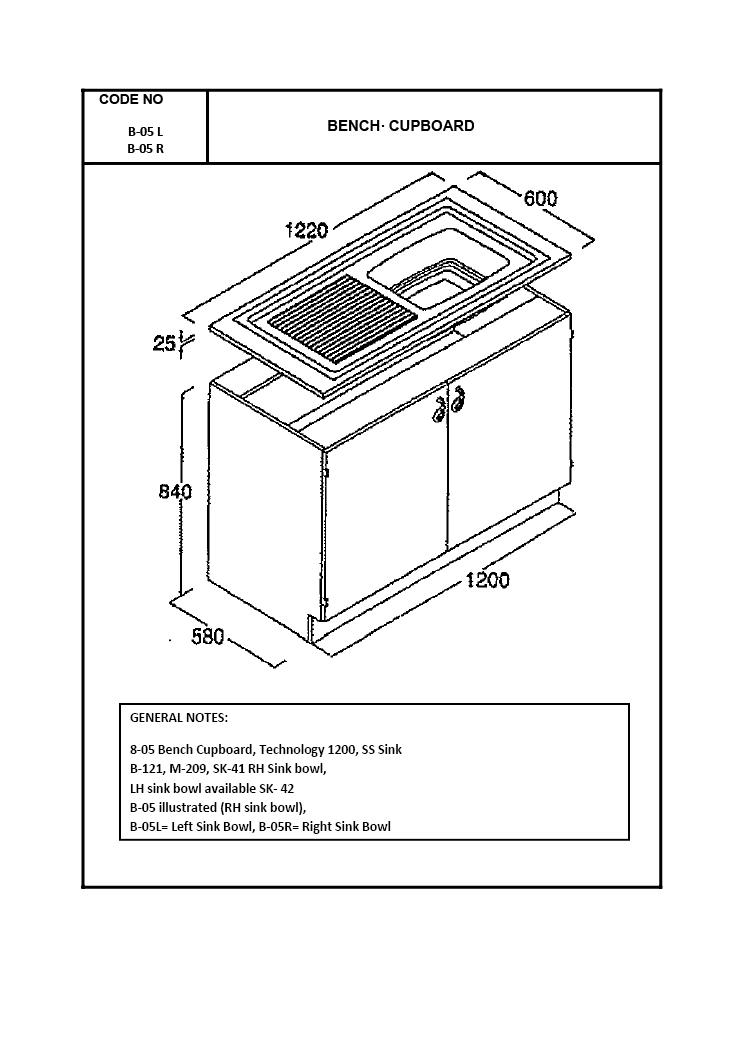

B-05	Fixed Bench Cupboard, RH Sink, w/Drainer, 1220	View image

D-05	Fixed Display Panel, Fabric, with frame, 1200	View image

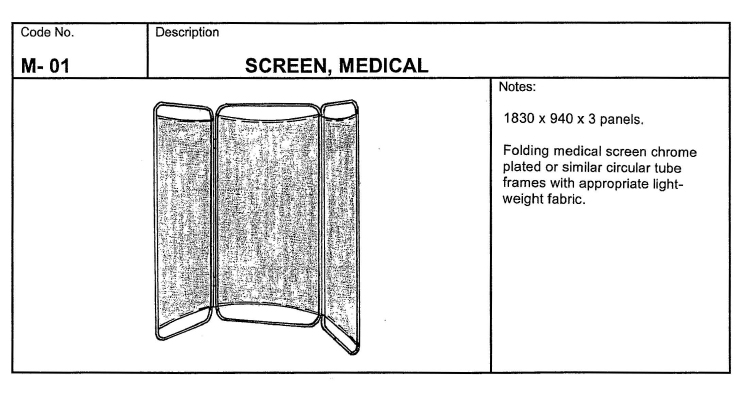

M-01	Screen, Medical, Three Fold Panel System	View image

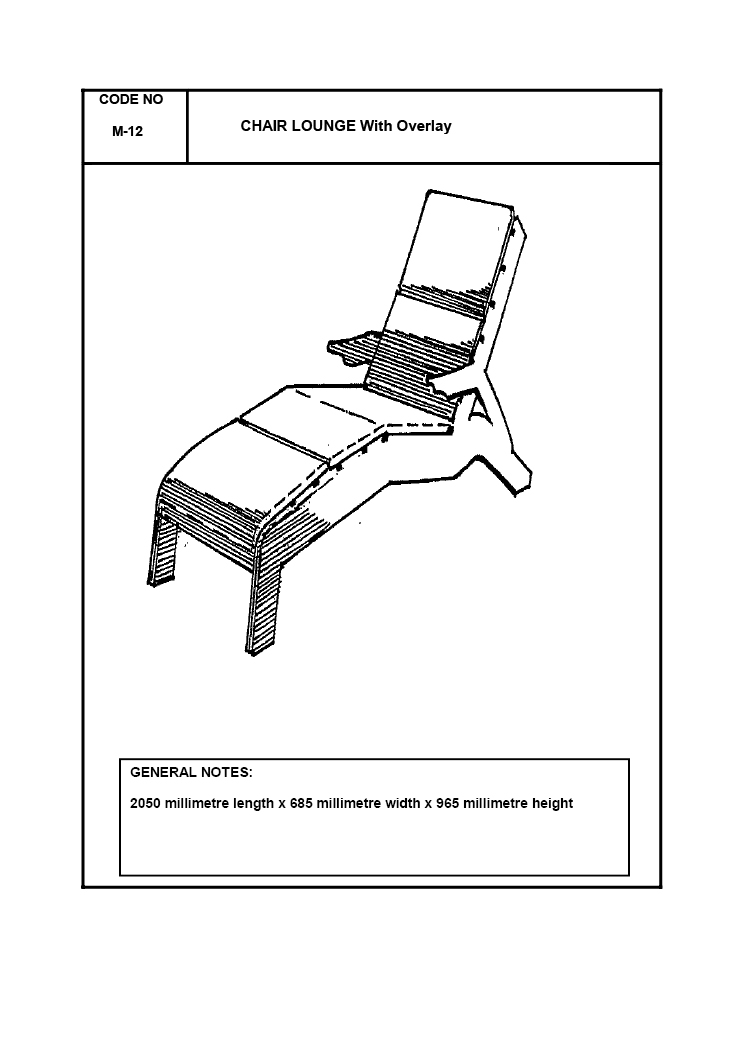

M-12	Sick Lounge, with Overlay	View image

S-55	Chair, Plastic F, Postura (Primary) (445mm height)	View image

T-155	Table, Computer, F (720mm height)	View image

SAMPLE PLANS & DETAILS

HS502.12 First Aid

hs502-12.pdf
