Control Room

Technical Data

Acoustics N/A	Ceiling ACC ACOUSTIC CEILING TYPE NRC: 0.6 - 0.8 Absorptive Ceiling. Refer to DG / CEILING	Communications OTH COMMUNICATIONS - OTHER Include Sound Reinforcement System and Hearing Augmentation system. If part of gym used as community hall, Entertainment Venue mandatory emergency communication systems will be required. Refer to DG / COMMUNICATIONS CO COMMUNICATIONS/TELEPHONE POINTS 1 double data point required. Refer to DG / COMMUNICATIONS AV AUDIO VISUAL REQUIREMENTS Audio visual facilites are required. Refer to DG / COMMUNICATIONS
Cooling N/A	Doors DT DOOR TYPE May require self closing fire door to reduce fire compartment size. Refer to DG / DOORS	Drainage N/A
Fire Protection PFE PORTABLE FIRE EXTINGUISHER/ BLANKET Portable fire extinguisher/fire blanket - to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH CP - Carpet finish. Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination OTH ILLUMINATION - OTHER Refer to DG / LIGHTING LUX LUX LEVEL Refer to DG / LIGHTING LC LIGHTING CONTROL Lighting control requirements as outlined in Design Guide. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed to Differ (KD). Refer to SG / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration and Staff Facilities (AF). Refer to SG / DOOR HARDWARE / KEYING
Light OTH LIGHTING - OTHER Lighting control panel for Gymnasium and Movement Studio located within room. Refer to DG / LIGHT - NATURAL DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA 10m2 Refer to DG / AREA OTH PLANNING - OTHER Direct access to Movement Studio and/or Gymnasium May require fire separation from Movement Studio or Gymnasium dependant upon fire compartment size. Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS For guidelines refer to Design Guide. Refer to DG / POWER
Security D SECURITY LEVEL D Category D - Moderately High Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE "CONTROL ROOM". Refer to DG / DOOR SIGNS	Ventilation N/A
Wall N/A	Water N/A	Windows OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS OTH WINDOWS - OTHER Observation panel (impact resistant polycarbonate) to Movement Studio and Gymnasium, 900mm wide 900mm high, lockable sliding window with security grill to movement studio. Refer to DG / WINDOWS

ID	Description
S-55	Chair, Plastic F, Postura (Primary) (445mm height)	View image

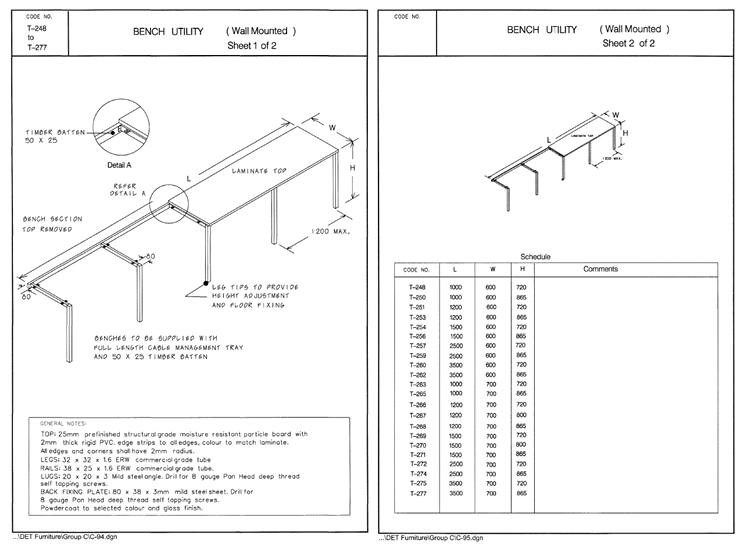

T-254	Fixed Bench, Utility (Wall Mounted), 1500 x 600 x 720	View image

T-260	Fixed Bench, Utility (Wall Mounted), 3500 x 600 x 720	View image

T-51	Table, Teachers, Mobile	View image

Description

S-55

Chair, Plastic F, Postura (Primary) (445mm height)

View image

T-254

Fixed Bench, Utility (Wall Mounted), 1500 x 600 x 720

View image

T-260

Fixed Bench, Utility (Wall Mounted), 3500 x 600 x 720

View image

T-51

Table, Teachers, Mobile

View image

ACOUSTIC CEILING TYPE

COMMUNICATIONS - OTHER

COMMUNICATIONS/TELEPHONE POINTS

AUDIO VISUAL REQUIREMENTS

DOOR TYPE

PORTABLE FIRE EXTINGUISHER/ BLANKET

FIRE HOSE REEL

FLOOR FINISH

ILLUMINATION - OTHER

LUX LEVEL

LIGHTING CONTROL

KEYING GENERAL

MASTER KEYING

LIGHTING - OTHER

DAYLIGHT

AREA

PLANNING - OTHER

GENERAL POWER OUTLETS

SECURITY LEVEL D

DOOR SIGNAGE

OBSERVATION WINDOWSObservation windows required.

Refer to DG / WINDOWS

WINDOWS - OTHER

hs502-11.pdf

OBSERVATION WINDOWS
Observation windows required.
