System Administrator's Office

Technical Data

Acoustics N/A	Ceiling ACC ACOUSTIC CEILING TYPE Standard ceiling. Refer to DG / CEILING	Communications CO COMMUNICATIONS/TELEPHONE POINTS 2 double data points required. Refer to DG / COMMUNICATIONS WAP WIRELESS ACCESS POINTS This room is to be wireless enabled. Refer to DG / COMMUNICATIONS
Cooling FAN FAN Fan required. Refer to DG / COOLING POLICY / CEILING/WALL FANS MC MECHANICAL COOLING Provide mechanical cooling where regionally appropriate. Refer to DG / COOLING POLICY	Doors N/A	Drainage N/A
Fire Protection FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH CP - Carpet finish. Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed Alike - Systems Administration (SA). Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration and Staff Facilities (AF). Refer to SG455 / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA 13m2. Refer to DG / AREA OTH PLANNING - OTHER Direct access from Adjacent Library Entry. Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS 4 double socket outlets. Refer to DG / POWER
Security C SECURITY LEVEL C Category C - Medium Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE "SYSTEMS ADMINISTRATOR". Refer to DG / DOOR SIGNS	Ventilation OTH VENTILATION - OTHER Refer to DG / VENTILATION
Wall N/A	Water N/A	Windows Y WINDOWS - Y Windows are required for this space. Refer to DG / WINDOWS OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS OTH WINDOWS - OTHER Glazing externally and internally to adjacent Entry with sill at 1m. Refer to DG / WINDOWS

ID	Description
B-21	Fixed Bench Cupboard, Technology 1000	View image

B-24	Fixed Bench Cupboard, Technology 500, 4 Drawers	View image

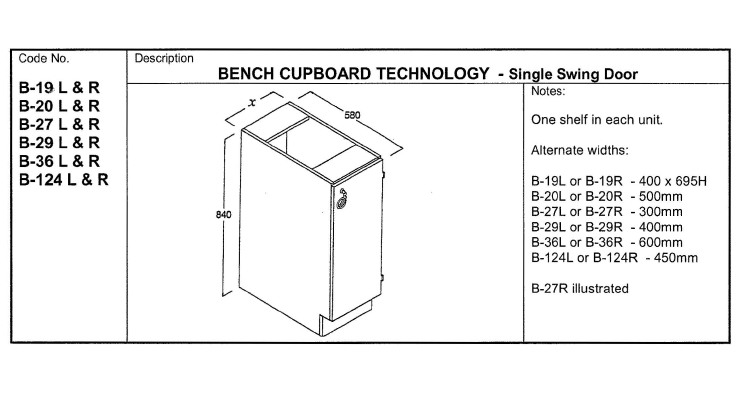

B-36L	Fixed Bench Cupboard, Technology 600, LH Door	View image

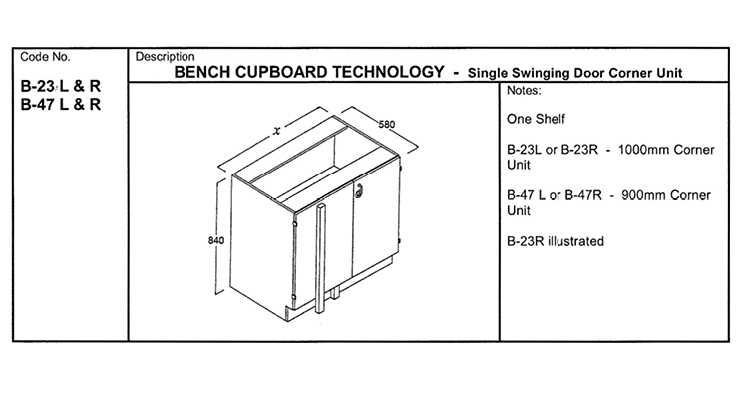

B-47L	Fixed Bench Cupboard, Technology 900, Corner Unit, LH Door	View image

Bo-20	Fixed Whiteboard, 1800	View image

D-06	Fixed Display Panel, Fabric, with frame, 1800	View image

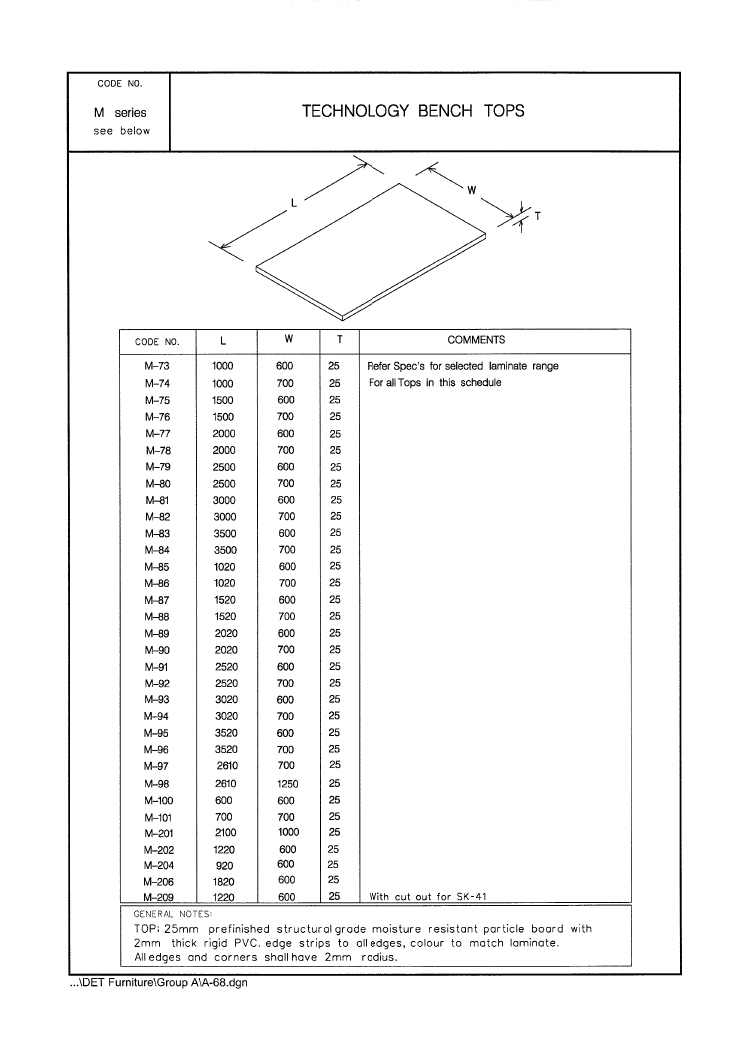

M-76	Fixed Top, Bench Technology, 1500 x 700	View image

M-78	Fixed Top, Bench Technology, 2000 x 700	View image

S-13	Chair, Swivel (with Arms)	View image

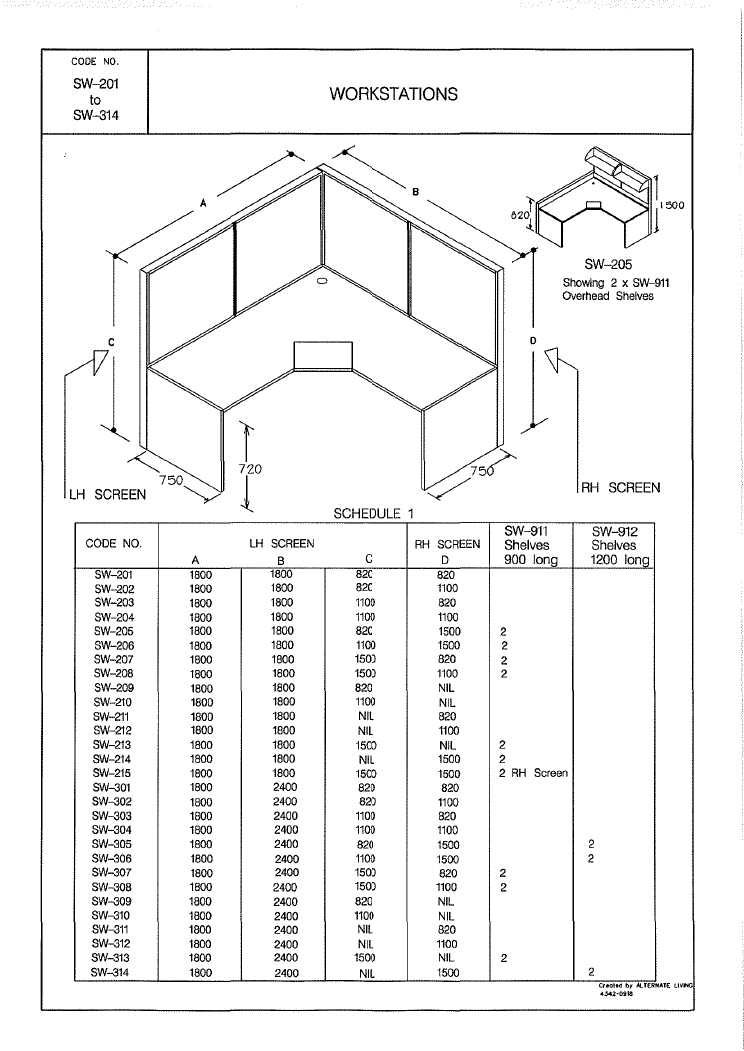

SW-201	Workstation, LH 1800 x RH 1800, LH Screen 1800 long x 820 high, RH Screen 1800 long x 820 high.	View image

T-88	Table, Pedestal, Mobile, 2 Drawer and File Drawer	View image

Description

B-21

Fixed Bench Cupboard, Technology 1000

View image

B-24

Fixed Bench Cupboard, Technology 500, 4 Drawers

View image

B-36L

Fixed Bench Cupboard, Technology 600, LH Door

View image

B-47L

Fixed Bench Cupboard, Technology 900, Corner Unit, LH Door

View image

Bo-20

Fixed Whiteboard, 1800

View image

D-06

Fixed Display Panel, Fabric, with frame, 1800

View image

M-76

Fixed Top, Bench Technology, 1500 x 700

View image

M-78

Fixed Top, Bench Technology, 2000 x 700

View image

S-13

Chair, Swivel (with Arms)

View image

SW-201

Workstation, LH 1800 x RH 1800, LH Screen 1800 long x 820 high, RH Screen 1800 long x 820 high.

View image

T-88

Table, Pedestal, Mobile, 2 Drawer and File Drawer

View image

ACOUSTIC CEILING TYPE

COMMUNICATIONS/TELEPHONE POINTS

FAN

MECHANICAL COOLING

FIRE HOSE REEL

FLOOR FINISH

GAS - OTHER

HEATING

LUX LEVEL

LIGHTING CONTROL

KEYING GENERAL

MASTER KEYING

DAYLIGHT

AREA

PLANNING - OTHER

GENERAL POWER OUTLETS

SECURITY LEVEL C

DOOR SIGNAGE

VENTILATION - OTHER

WINDOWS - Y

Windows are required for this space.
Refer to DG / WINDOWS

OBSERVATION WINDOWS
Observation windows required.

Refer to DG / WINDOWS

WINDOWS - OTHER
