Library Administration

Technical Data

Acoustics NL NOISE LEVELS Noise levels within this space should be considered. Refer to DG / ACOUSTICS / INTERNAL NOISE LEVELS R2R ROOM TO ROOM NOISE Noise to and from adjacent rooms should be considered. Refer to DG / ACOUSTICS / ROOM TO ROOM NOISE CONTROL RA ROOM ACOUSTICS Room acoustics, particularly reverberation time should be considered. Refer to DG / ACOUSTICS / ROOM ACOUSTICS	Ceiling ACC ACOUSTIC CEILING TYPE Standard ceiling. Refer to DG / CEILING	Communications CO COMMUNICATIONS/TELEPHONE POINTS Type 1 - 6 double data points Type 2 - 5 double data points Type 3 - 4 double data points Type 4 - 4 double data points Refer to DG / COMMUNICATIONS AV AUDIO VISUAL REQUIREMENTS Audio visual facilites are required. Refer to DG / COMMUNICATIONS WAP WIRELESS ACCESS POINTS This room is to be wireless enabled. Refer to DG / COMMUNICATIONS
Cooling FAN FAN Fan required. Refer to DG / COOLING POLICY / CEILING/WALL FANS MC MECHANICAL COOLING Provide mechanical cooling where regionally appropriate. Refer to DG / COOLING POLICY	Doors DT DOOR TYPE Half glazed door access from adjacent Main Area. Refer to DG / DOORS GL DOOR GLAZING Half glazed doors from adjacent Main Area. Refer to DG / DOORS	Drainage SD SANITARY DRAINAGE FIXTURES 1 drainage outlet. Refer to DG / DRAINAGE
Fire Protection FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH CP - Carpet finish. Matt near sink. Refer to DG / FLOOR	Gas OTH GAS - OTHER Gas may be used for heating. Refer to DG / GAS
Heating H HEATING Provide heating where regionally appropriate. Refer to DG / HEATING	Illumination LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed alike - Library Facility (LIB). Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Administration and Staff Facilities (AF). Refer to SG455 / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA Type 1 - 62m2 Type 2 - 54m2 Type 3 - 41m2 Type 4 - 41m2 Refer to DG / AREA OTH PLANNING - OTHER Accessed from adjacent Main Area. Refer to DG / AREA	Power CM CABLE MANAGEMENT Cable management to be considered. Refer to DG / POWER GPO GENERAL POWER OUTLETS Refer to DG / POWER
Security C SECURITY LEVEL C Category C - Medium Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE LIBRARY ADMINISTRATION (main sign) STAFF ONLY (secondary sign). Refer to DG / DOOR SIGNS SIG SIGNS GENERAL SAFETY NOTICES Sign with red writing and symbol “Warning – this fixture may deliver hot water which will scald.” -adjacent to the sink. Refer to DG / SIGNS	Ventilation OTH VENTILATION - OTHER Refer to DG / VENTILATION
Wall OTH WALL - OTHER 450mm high Splashback to sinks. Refer to SG / LINING	Water HW TEMPERED WATER Required to 1 x sink. Refer to DG / WATER CW COLD WATER Required to 1 x sink. Refer to DG / WATER	Windows Y WINDOWS - Y Windows are required for this space. Refer to DG / WINDOWS OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS OTH WINDOW - OTHER External glazing, sill height 1000mm min. Grills to external glazing Internal glazing to adjacent Main Area for supervision, sill height 1000mm min, 1100mm max. Refer to DG / WINDOWS

ID	Description

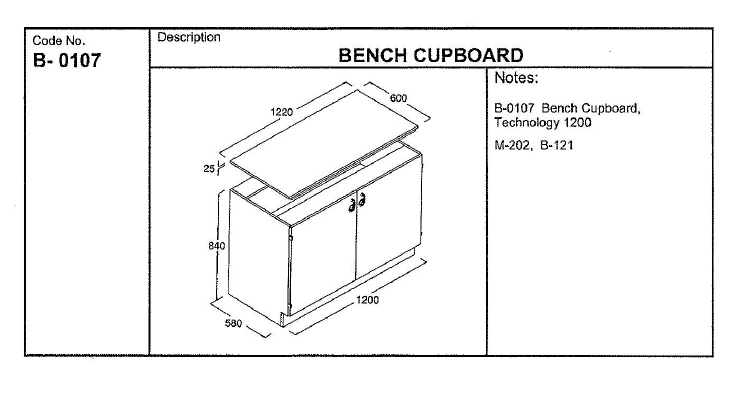

B-0107	Bench Cupboard, 1220	View image

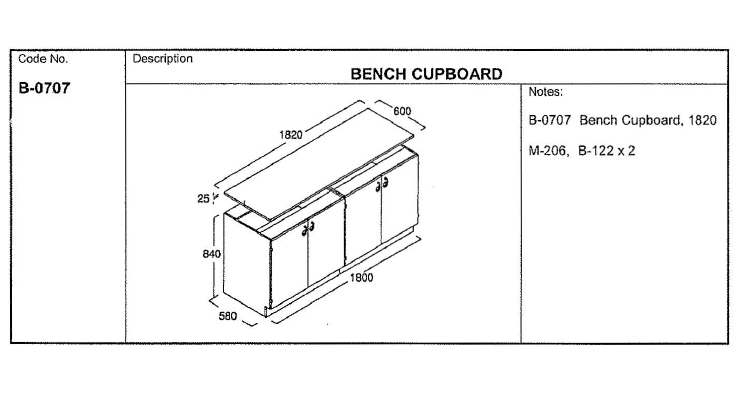

B-0707	Bench Cupboard, 1820	View image

L-02	Student Lockers, 2 Door, Low	View image

LS-032	Fixed Shelving, 800mm, Wall Fixed, Starting Bay with 3 Std 250mm Shelves	View image

LS-042	Fixed Shelving, 800mm, Wall Fixed, Add on Bay with 3 Std 250mm Shelves	View image

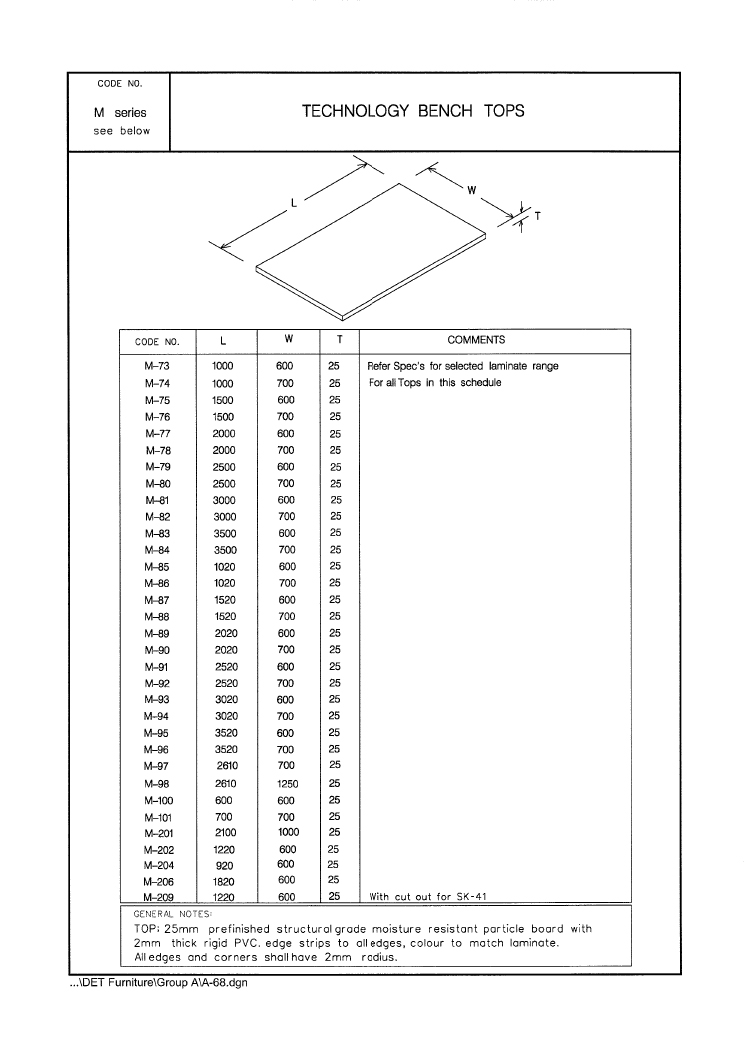

M-209	Fixed Top, Bench Technology, with cut out for SK-41, 1220 x 600	View image

S-13	Chair, Swivel (with Arms)	View image

S-14	Chair, Swivel, Gas (without Arms)	View image

S-93	Chair, Visitor (with Arms) - Vinyl or Wool	View image

SK-41	Fixed Sink, Right Hand Bowl	View image

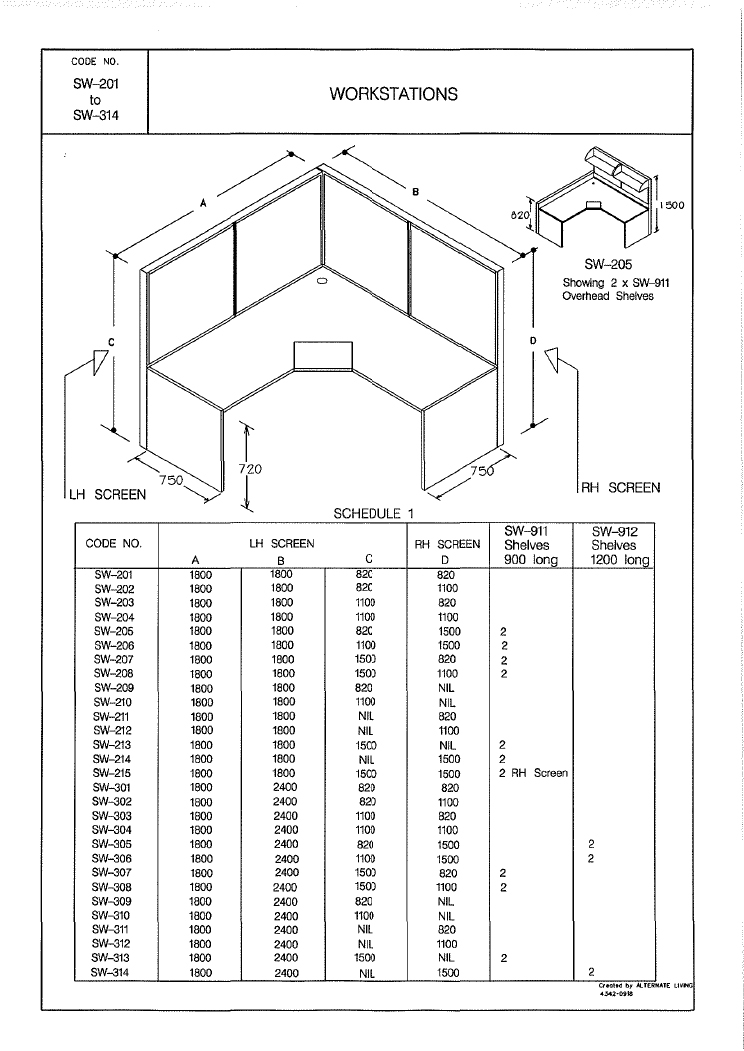

SW-205	Workstation, LH 1800 x RH 1800, LH Screen 1800 long x 820 high, RH Screen 1800 long x 1500 high with 2 shelf units.	View image

SW-207	Workstation, LH 1800 x RH 1800, LH Screen 1800 long x 1500 high with 2 shelf units, RH Screen 1800 long x 820 high.	View image

SW-211	Workstation, LH 1800 x RH 1800, No LH Screen, RH Screen 1800 long x 820 high.	View image

SW-407	Workstation, LH 2400 x RH 1800, LH Screen 2400 long x 1500 high with 2 shelf units, RH Screen 1800 long x 820 high.	View image

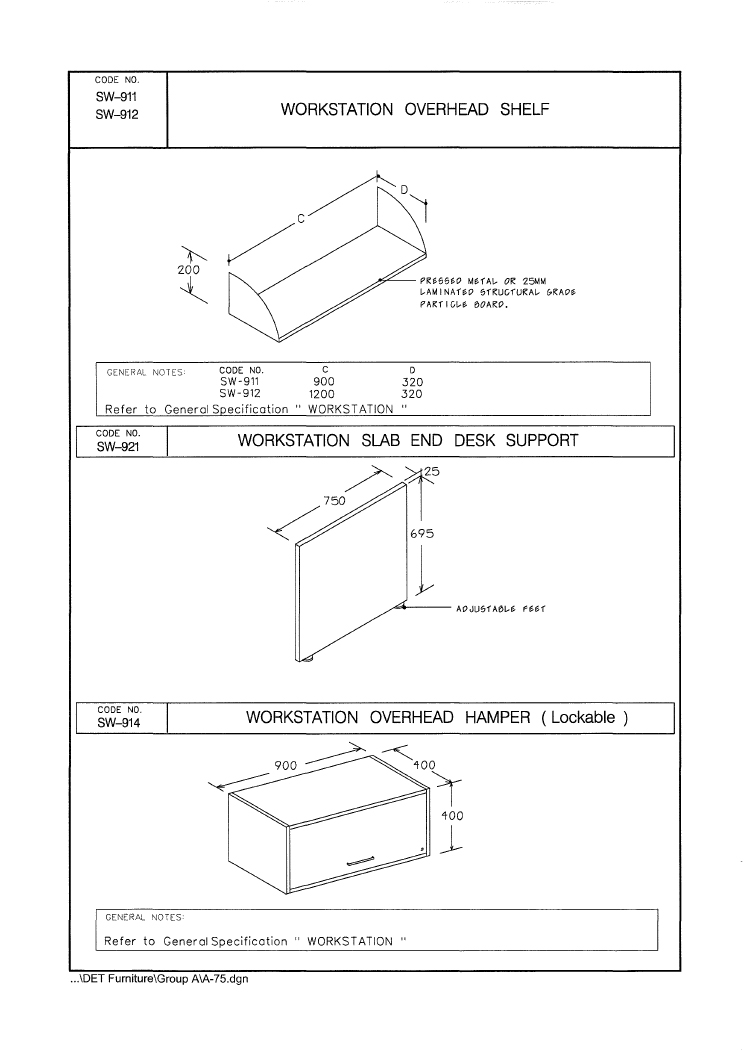

SW-911	Single Overhead Shelf, 900 long x 320 deep.	View image

T-60	Table, Bench Height	View image

T-88	Table, Pedestal, Mobile, 2 Drawer and File Drawer	View image

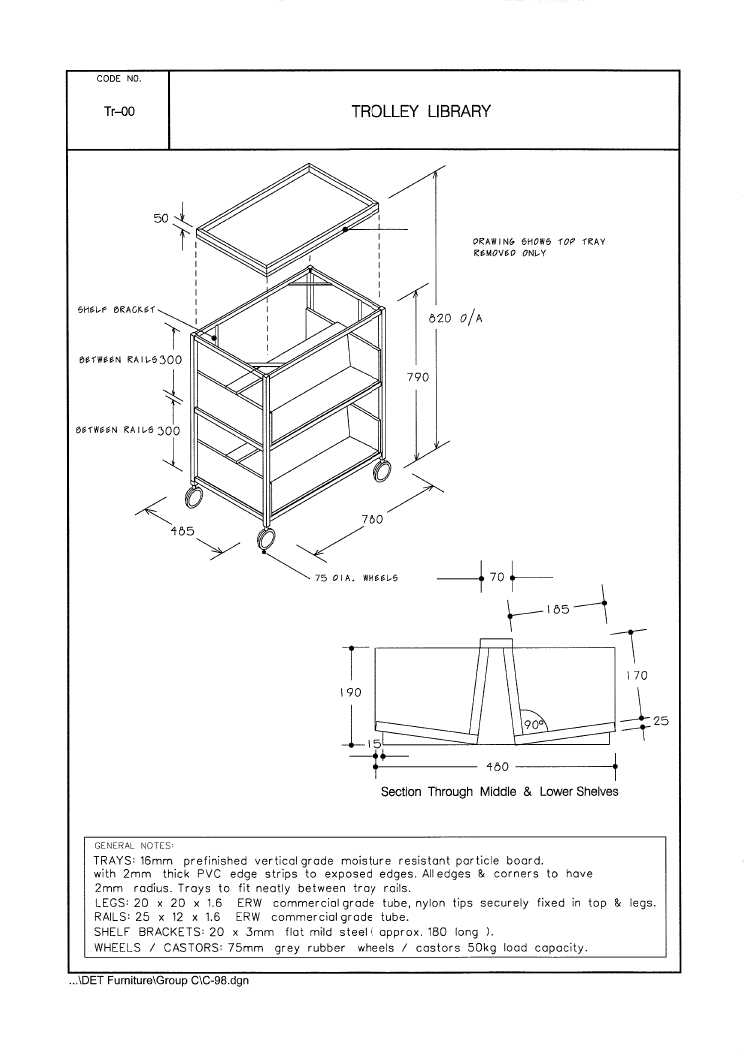

Tr-00	Trolley, Library	View image

Tr-28	Trolley, Metal, Book	View image

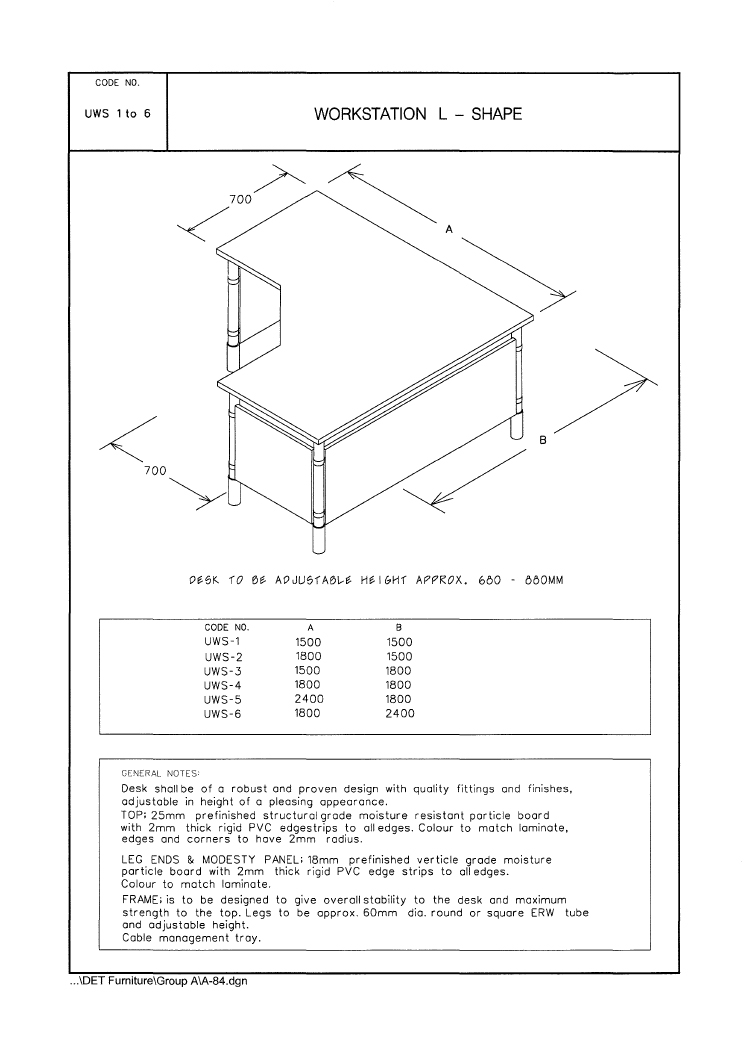

UWS-4	Workstation L-shaped, 1800 x 1800	View image

UWS-5	Workstation L-shaped, left hand longest run, 2400 x 1800	View image

Description

B-0107

Bench Cupboard, 1220
