Wood & Metal Workshop

DESIGN INTENT

This workshop provides a learning space for 22 students and one teacher. Students complete wood and metal related learning experiences and practice the routines and procedures necessary to do this safely. Fixed benches enable teachers to develop a clear work plan for each student. The workshop is designed to support explore, investigate and create, fabricate and construct activities. The mandatory relationship with two General Learning Spaces separates the function of the specialised metal and work facilities from general learning activities thus creating greater availability and use of the specialist equipment.

FURTHER OPPORTUNITIES

Connecting the adjoining General Learning Spaces would enable greater diversity of learning settings and learning activities. Access to an outside learning area from the workshop would expand the nature and type of activities that can be conducted. The inclusion of a glass sliding door to the adjacent General Learning Spaces would create ease of flow and greater access between learning spaces and the adjacent workshop. The room also lends to use as a specific purpose afterschool school and community activity space.

LEARNING IMPLICATIONS

Given the size of the room and consideration will need to be given to active supervision. The specific nature of the equipment and noise levels will generally require individual and pair explicit teaching activities. Student work samples can be displayed but consideration will need to be given to the type of work sample, the display technique and equipment being used in learning activities. Given that the space is shared by two General Learning Spaces, negotiation of use between teachers and students will be required and consideration will need to be given to the acoustic and spatial layout demands of activities being conducted at the same. Noise interference to the adjacent learning environments can be a factor if learning processes with different acoustic requirements are operated at the same time.

Dialogue/discuss/read or tell stories

Explore ideas, share and develop opinions, debate and decide.

Individual / pair:

Small group 3 - 5:

Medium group 6 - 12:

Large group 13 - 30:

Very large group > 30:

This learning process is effective with small to large groups provided specific criteria can be met.

Display/share/exchange

Display, exchange and encounter learning artefacts.

Individual / pair:

Small group 3 - 5:

Medium group 6 - 12:

Large group 13 - 30:

Very large group > 30:

This learning process is effective with small to very large groups provided specific criteria can be met.

Explicitly teach/demonstrate/present

Teachers and/or students demonstrate, communicate ideas and/or teach explicitly.

Individual / pair:

Small group 3 - 5:

Medium group 6 - 12:

Large group 13 - 30:

Very large group > 30:

This learning process is effective with small to very large groups provided specific criteria can be met.

Explore/investigate/create

Hands on interaction, experimentation and evaluation with materials to discover, design and test.

Individual / pair:

Small group 3 - 5:

Medium group 6 - 12:

Large group 13 - 30:

Very large group > 30:

This learning process is effective with small to very large groups provided specific criteria can be met.

Fabricate/construct

Implement, build or assemble systems and media.

Individual / pair:

Small group 3 - 5:

Medium group 6 - 12:

Large group 13 - 30:

Very large group > 30:

This learning process is effective with small to very large groups provided specific criteria can be met.

Reflect/research/enquire/consolidate

Use written, graphical and digital resources to personally reflect, consolidate and/or enquire.

Individual / pair:

Small group 3 - 5:

Medium group 6 - 12:

Large group 13 - 30:

Very large group > 30:

This learning process is for individual or small groups and is effective provided specific criteria can be met.

Rehearse/Perform

Practise, refine and execute performance based activity.

Individual / pair:

Small group 3 - 5:

Medium group 6 - 12:

Large group 13 - 30:

Very large group > 30:

This learning process is effective with small to very large groups provided specific criteria can be met.

Ratings against the Design Criteria

Technical Data

Acoustics N/A	Ceiling RES RESISTANCE Impact Resistant Ceiling OTH CEILING - OTHER Total finish to reflect the industrial environment. ACC ACOUSTIC CEILING TYPE NRC >0.85 highly absorptive ceiling	Communications CO COMMUNICATIONS/TELEPHONE POINTS 2 double data points required WAP WIRELESS ACCESS POINTS This room is to be wireless enabled. Refer to DG / COMMUNICATIONS
Cooling N/A	Doors DT DOOR TYPE Half glazed double doors to adjacent Outdoor Covered Workshop, Roller shutter access to adjacent Project Store. Door seals to doors to General Learning Spaces. Refer to DG / DOORS GL DOOR GLAZING Half glazed doors. Refer to DG / DOORS	Drainage SD SANITARY DRAINAGE FIXTURES 2 drainage outlets. Refer to DG / DRAINAGE
Fire Protection PFE PORTABLE FIRE EXTINGUISHER/ BLANKET Portable fire extinguisher and fire blanket are required. Comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH Industrial Sheet Flooring (ISF) Concrete (CC) to Finishing area and Welding/Hot metals area. Refer to DG / FLOOR FW FLOOR WASTE Floor waste(s) are to be included with falls in floor. Refer to DG / DRAINAGE (& TRADE WASTE) OTH FLOOR - OTHER Ensure floor is well graded to floor waste. Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination OTH ILLUMINATION - OTHER Refer to DG / LIGHTING LUX LUX LEVEL 240 lux. Refer to DG / LIGHTING LC LIGHTING CONTROL Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed alike - Materials Learning Unit Type 1 (MT2). Refer to SG / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Learning Space (LS). Refer to SG / DOOR HARDWARE / KEYING
Light DL DAYLIGHT Daylight is recommended for this space. Refer to DG / LIGHT - NATURAL	Planning m^2 AREA 120m2. Refer to DG / AREA OTH PLANNING - OTHER Designed for furniture and equipment layout. Bench to Bench space min.1200mm. Bench to wall space 600mm. Finishing area may be interchanged with welding/hot metals area in Outdoor Covered Workshop. Refer to DG / AREA	Power CM CABLE MANAGEMENT Cable management to be considered. Refer to DG / POWER GPO GENERAL POWER OUTLETS Refer to DG / POWER
Security A SECURITY LEVEL A Category A - Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE " MATERIALS WORKSHOP". Refer to DG / DOOR SIGNS SIG SIGNS GENERAL SAFETY NOTICES Mandatory signs stating "EYE PROTECTION REQUIRED" plus symbol, "HEARING PROTECTION REQUIRED" plus symbol, "FOOT PROTECTION (ENCLOSED FOOTWEAR) REQUIRED" plus symbol, at both ends of the Machine Zone in a conspicuous position. Mandatory signs "GUARDS MUST BE IN PLACE BEFORE SWITCHING ON", at both ends of the Machine Zone in a conspicuous position. Notices "KEEP AISLES CLEAR", at both ends of Workshop in a conspicuous position. Warning sign "SPRAY PAINTING IS STRICTLY PROHIBITTED", in Finishing Area in a conspicuous position. Emergency sign (red background) "EMERGENCY STOP", above the key operated Master Control for Power. Refer to DG / SIGNS	Ventilation EXH GENERAL EXHAUST Refer to DG / VENTILATION
Wall PF PINBOARD FINISH Maximise Cork/Linoleum pinboard finish from 900mm or top of splashback to 2100mm, but not in Finishing area or Welding/Hot Metals Area. Refer to SG / LINING OTH WALL - OTHER 450mm high Stainless Steel Splashback to bucket sink. Refer to SG / LINING	Water CW COLD WATER Required to 1 x bucket sink. Refer to DG / WATER	Windows Y WINDOWS - Y Windows are required for this space. Refer to DG / WINDOWS OB OBSERVATION WINDOWS Observation windows required. Refer to DG / WINDOWS OTH 8WINDOWS - OTHER Double glazed observation window between General Learning Area and Workshop. Maximise width, with sill at 1.8m Maximise External Glazing, with sill at 1.8m Restrict Glare and direct sun on equipment. Refer to DG / WINDOWS

ID	Description

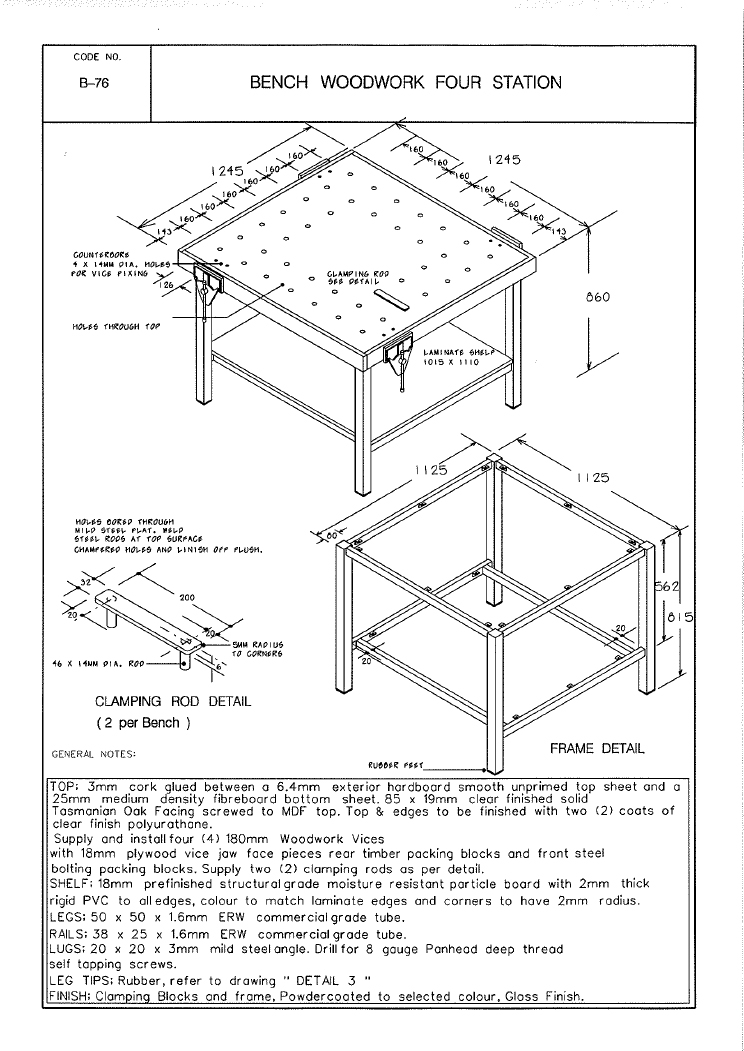

B-76	Bench, Woodwork, 4 Station	View image

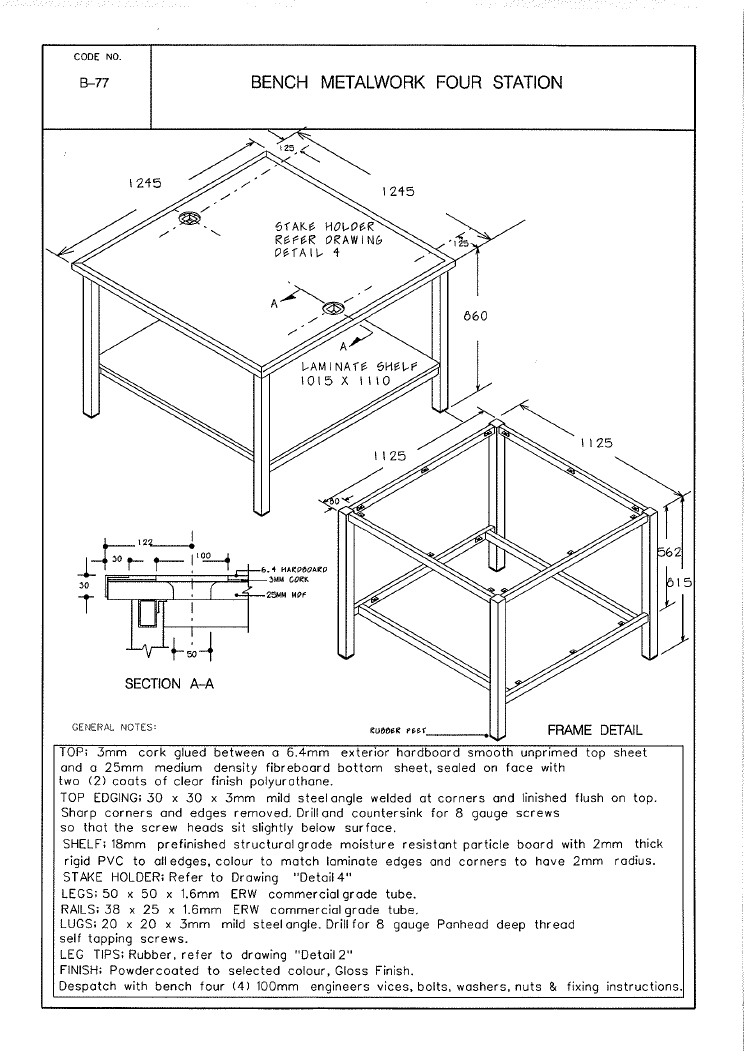

B-77	Bench, Metalwork, 4 Station	View image

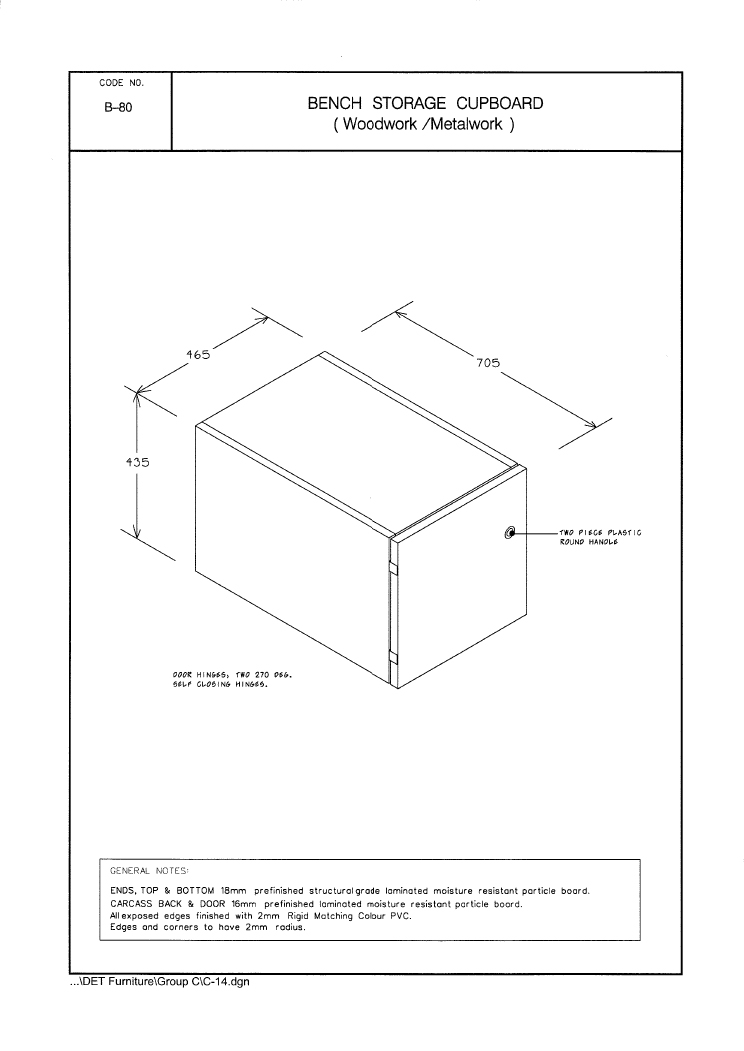

B-80	Bench, Storage Cupboard (For B-76 to B-79)	View image

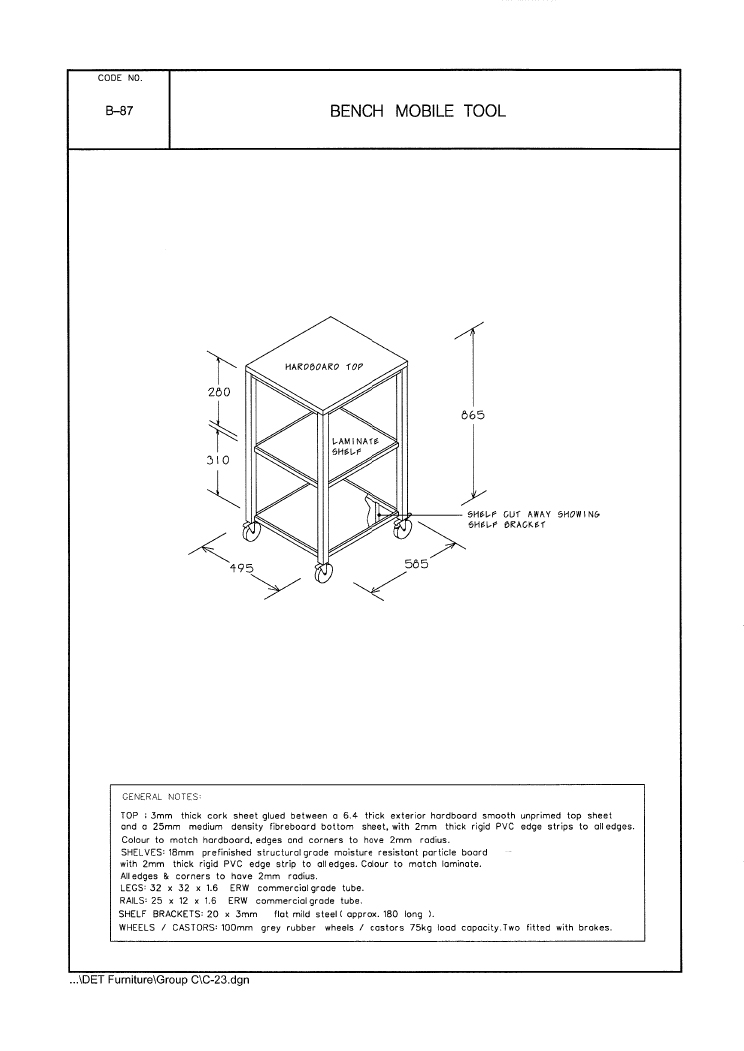

B-87	Bench, Mobile, Tool	View image

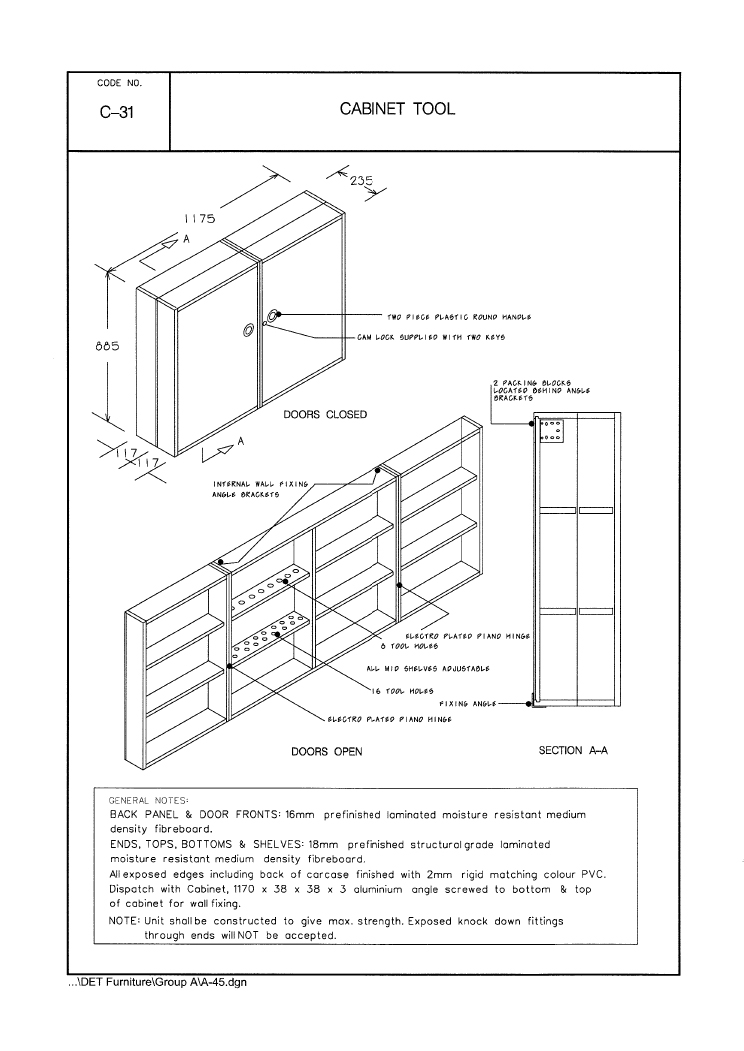

C-31	Fixed Cabinet, Tool	View image

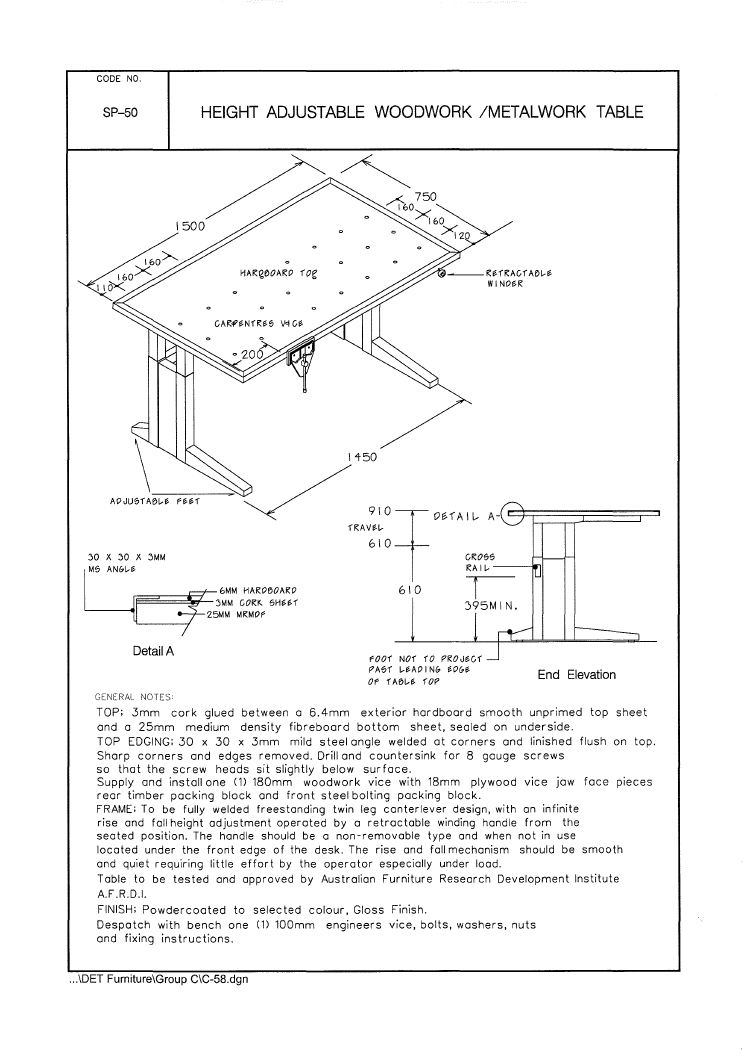

Sp-50	Fixed Bench, Height Adjustable (front wind), Wood/Metal	View image
