PS503.11

Chair Store Room

The Chair Store Room is for the storage of stackable chairs for use in the Communal Hall. This space should have level access for staff and students under supervision.

Room Relationships

This space is found in the Communal Hall Unit. This space should have direct access to the Communal Hall for (Covered Outdoor Learning Area (COLA) or Covered Outdoor Learning Area (COLA) - With Seating.)

Technical Data

Acoustics N/A	Ceiling FR FIRE RATED CEILINGS Fire rated ceiling linings are required. Refer to DG / CEILING RES RESISTANCE Impact resistant ceiling required. Refer to DG / CEILING	Communications N/A
Cooling N/A	Doors DT DOOR TYPE Minimum 1500mm clear opening Maximum 2100mm clear opening. Refer to DG / DOORS FR FIRE-RATED DOORS Fire-rated doors are required. Refer to DG / DOORS	Drainage N/A
Fire Protection FHR FIRE HOSE REEL Fire Hose Reels as required to comply with NCC. Refer to DG / BUILDING REGULATIONS & BUILDING CODE OF AUSTRALIA / SERVICES AND EQUIPMENT	Floor FF FLOOR FINISH Steel troweled concrete. Refer to DG / FLOOR	Gas N/A
Heating N/A	Illumination LUX LUX LEVEL 160 lux. Refer to DG / LIGHTING	Keying KY KEYING GENERAL Keyed alike - Communal Hall. Refer to SG455 / DOOR HARDWARE / KEYING MKY MASTER KEYING Master keyed - Storage Spaces. Refer to SG455 / DOOR HARDWARE / KEYING
Light N/A	Planning m^2 AREA Type 1 - 7 m2 for Core seven Type 2 - 9 m2 for Core fourteen Type 3 - 11 m2 for Core twenty one Refer to DG / AREA OTH PLANNING - OTHER Proportions to suit stacking of chairs. Room fire separated from other areas (FRL 60/60/60). Refer to DG / AREA XY PROPORTION Designed as a community hall (entertainment venue) store room. Refer to DG / AREA	Power GPO GENERAL POWER OUTLETS 1 double socket outlet. Refer to DG / POWER
Security B SECURITY LEVEL B Category B - Moderately Low Security Level applies. Refer to DG / SECURITY CATEGORIES FOR OPENINGS	Signs DSF DOOR SIGNAGE Door signage required. Suggested text "Chair Store". Refer to DG / DOOR SIGNS OTH SIGNS - OTHER In a conspicuous internal position: Notice stating "This Store is for Chairs or Performing Arts Equipment only" "Doors may only be open during Performances/ Meetings if no flammable materials are present". Refer to DG / SIGNS	Ventilation N/A
Wall FR FIRE RATED WALL Fire rated walls required (--/60/60). Refer to DG / WALLS and DG / FABRIC OTH WALL - OTHER Fire rated walls to storeroom (--/60/60). Refer to SG / LINING IR IMPACT RESISTANCE Impact resistant walls are recommended. Refer to DG / FABRIC	Water N/A	Windows N WINDOWS - N Windows are not required for this space. Refer to DG / WINDOWS VP VISUAL PRIVACY Visual privacy is required from other spaces. Refer to DG / WINDOWS

Suggested Fixtures

There are no suggested fixtures for this space.

Suggested Furniture

ID	Description

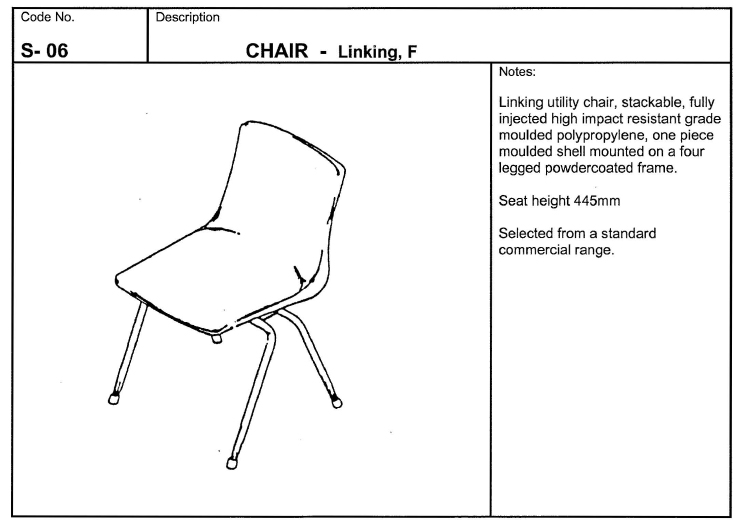

S-06	Chair, Linking, F (445mm height)	View image

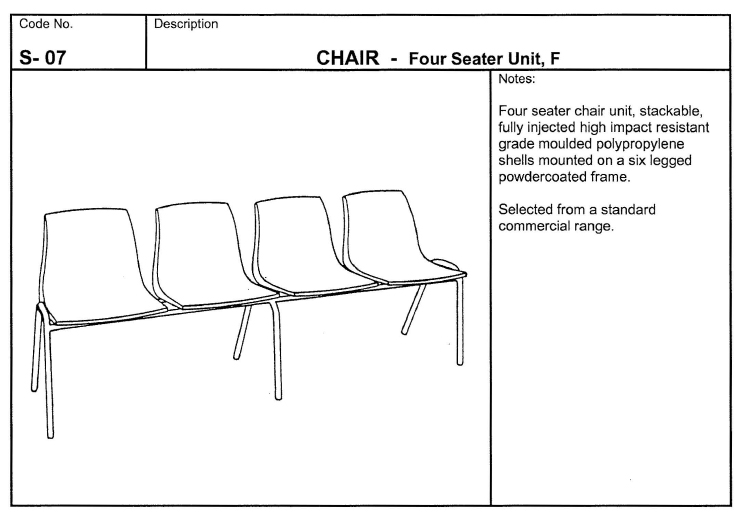

S-07	Chair, Four Seater Unit, F (445mm height)	View image

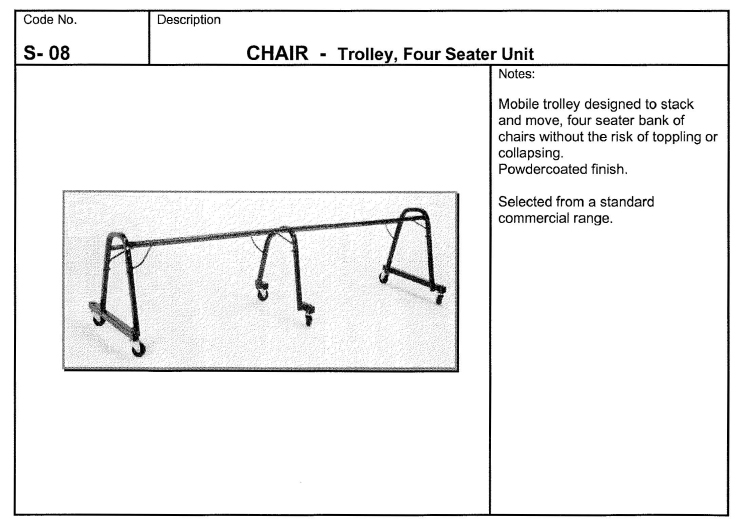

S-08	Chair Trolley, Four Seater Unit	View image

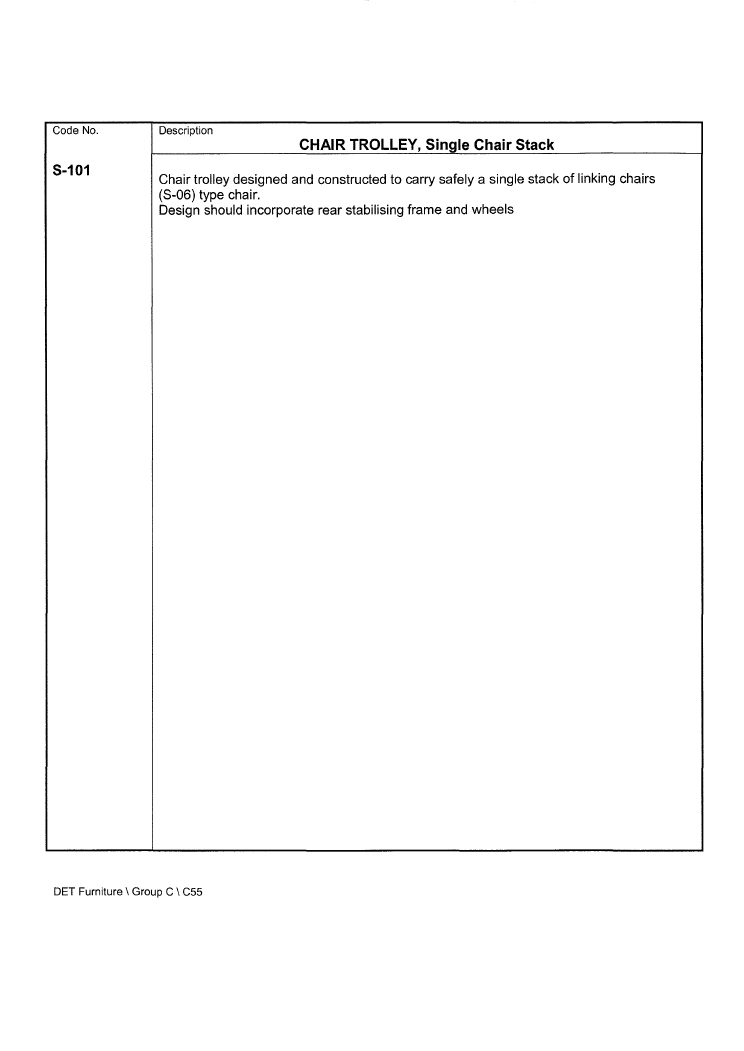

S-101	Chair Trolley, Single Chair Stack	View image

Sample Plans & Details

ps503-11.pdf

ps503-11.pdf (144 KB)

PS503.11 - Chair Store Room - Type 1

ps503-12.pdf

ps503-12.pdf (146 KB)

PS503.12 - Chair Store Room - Type 2

ps503-13.pdf

ps503-13.pdf (156 KB)

PS503.13 - Chair Store - Type 3
